DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ315

Zurn Vandal Proof Access Drain (Drainage). Model Z315. 10 in [254 mm] top vandal proof drain; Includes secondary strainer and hinged solid locking cover; Weight ranges from 23 to 25 lbs [10-11 kg] depending on size; Available with Galvanized Cast Iron or Hinged Locking Grate options. material: Dura-Coated cast iron body, nickel bronze top

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ315.pdfData sheet

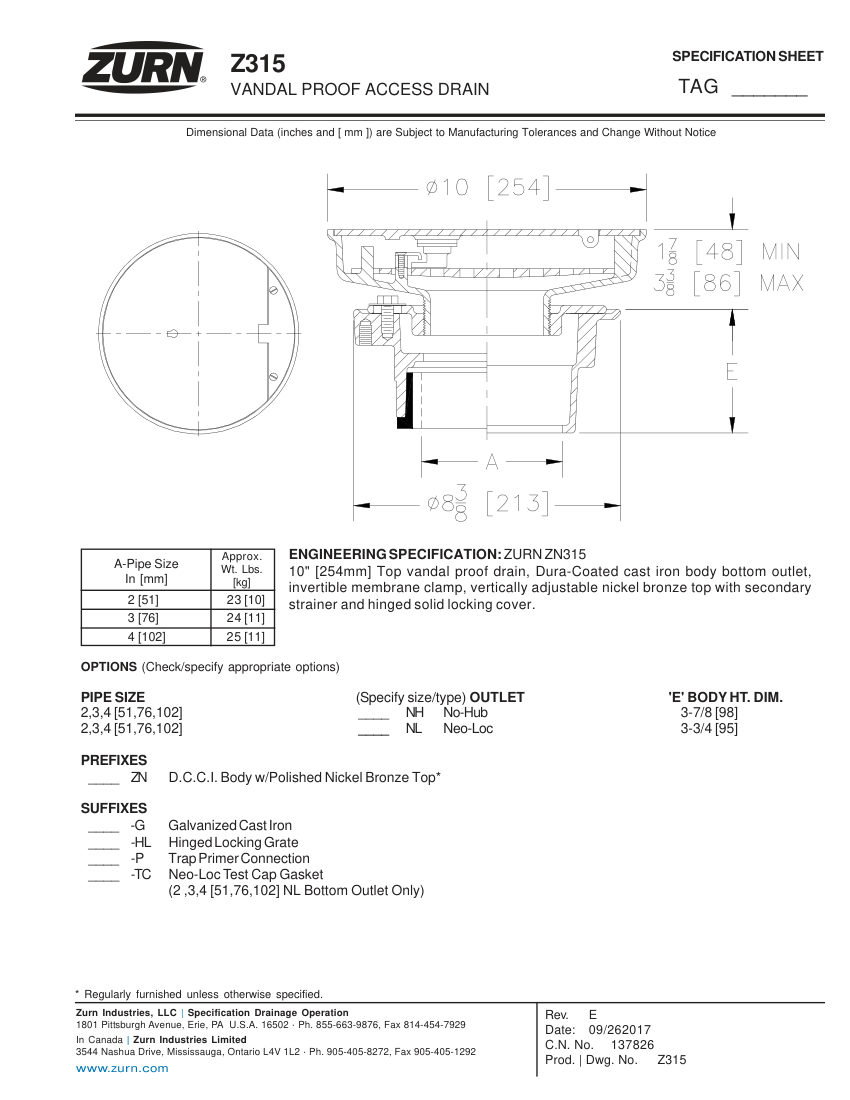

Zurn Z315 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z315
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ315
DescriptionZurn Vandal Proof Access Drain (Drainage). Model Z315. 10 in [254 mm] top vandal proof drain; Includes secondary strainer and hinged solid locking cover; Weight ranges from 23 to 25 lbs [10-11 kg] depending on size; Available with Galvanized Cast Iron or Hinged Locking Grate options. material: Dura-Coated cast iron body, nickel bronze top
Connection size2, 3, 4 in [51, 76, 102 mm]
End connectionBottom outlet, NH No-Hub or NL Neo-Loc
FinishDura-Coated cast iron, polished nickel bronze
MountingInvertible membrane clamp, vertically adjustable
DimensionsBody height 3-7/8 in [98 mm] or
