ZurnZ320

Zurn Refrigerator drain (Drainage). Model Z320. 9" [229mm] Refrigerator drain; Cast iron body with white acid resistant epoxy coated interior; Nickel bronze flushing rim top; Recessed hinged grate. material: Cast iron body, white acid resistant epoxy coated interior, nickel bronze flushing rim

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ320.pdfData sheet

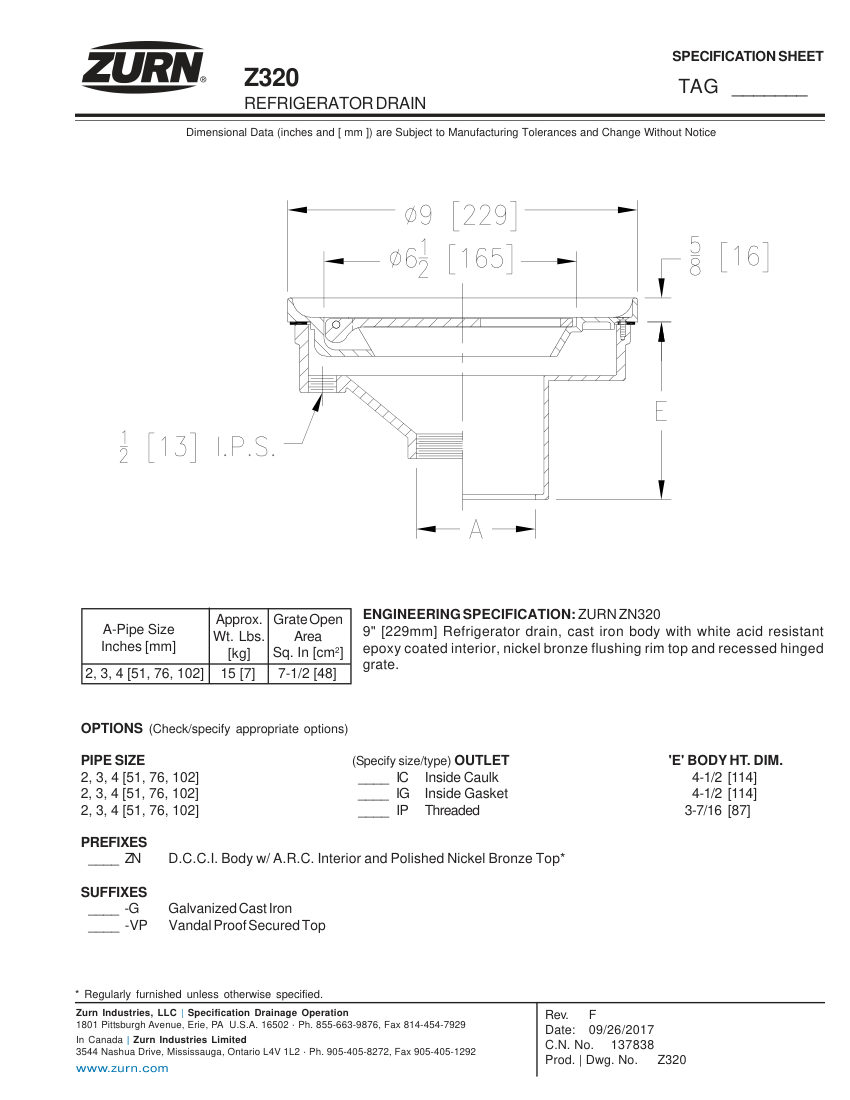

Zurn Z320 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z320
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ320
DescriptionZurn Refrigerator drain (Drainage). Model Z320. 9" [229mm] Refrigerator drain; Cast iron body with white acid resistant epoxy coated interior; Nickel bronze flushing rim top; Recessed hinged grate. material: Cast iron body, white acid resistant epoxy coated interior, nickel bronze flushing rim
Connection size2, 3, 4 [51, 76, 102] inches
End connectionInside Caulk, Inside Gasket, or Threaded
FinishWhite acid resistant epoxy interior, nickel bronze top
MountingRecessed hinged grate
Dimensions9" [229mm] overall, 4-1/2" [114mm] body height (IC/IG), 3-7/16" [87mm] body height (IP).
