ZurnZ400-LR — LigatureZ400-LR
Zurn Strainer Top (Drainage). Model Z400-LR. Type LR round adjustable light-duty strainer top; Features heel-proof, ADA, and vandal-proof ligature resistant grate; Available in 5-inch and 6-inch sizes; Standard material is Stainless Steel; Polished Nickel Bronze is an option. material: Stainless Steel (Standard), Polished Nickel Bronze (Optional)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Zurn
- Catalog no.
- Z400-LR
- Product type
- Plumbing
- MasterFormat
- 22

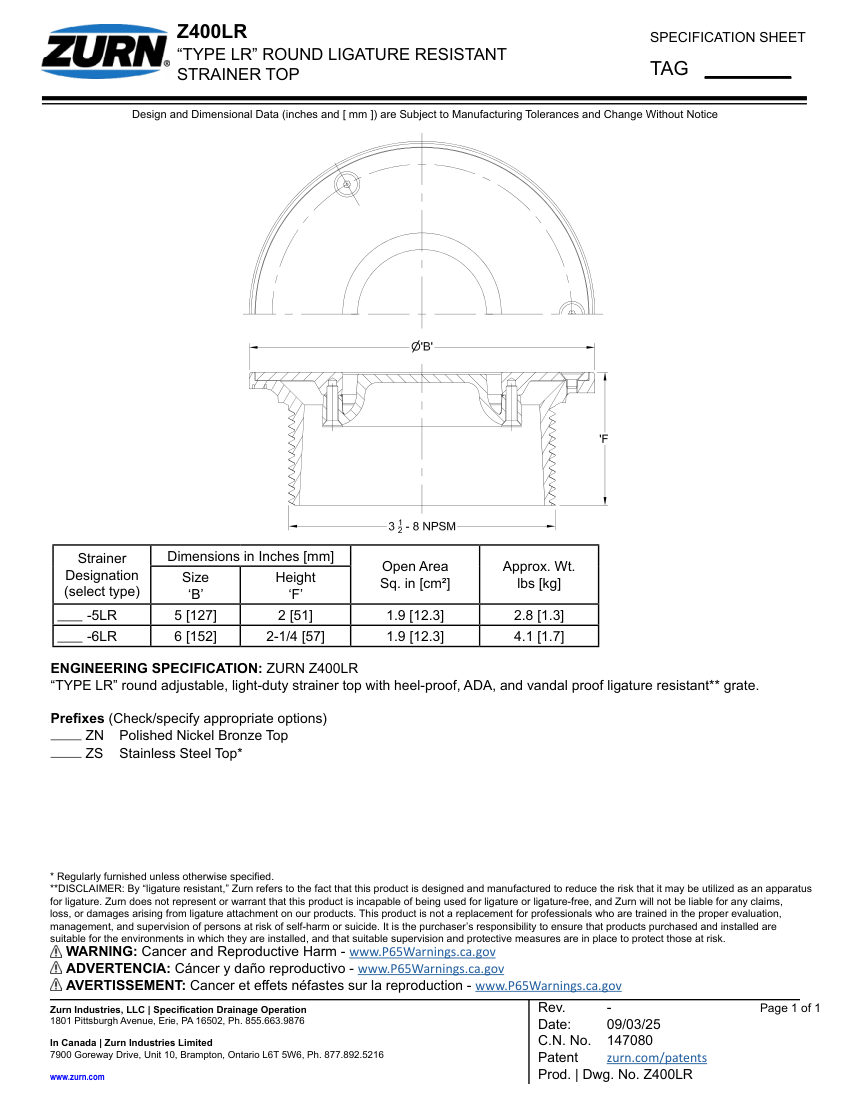

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | Z400-LR |
|---|---|
| Description | Zurn Strainer Top (Drainage). Model Z400-LR. Type LR round adjustable light-duty strainer top; Features heel-proof, ADA, and vandal-proof ligature resistant grate; Available in 5-inch and 6-inch sizes; Standard material is Stainless Steel; Polished Nickel Bronze is an option. material: Stainless Steel (Standard), Polished Nickel Bronze (Optional) |
| Connection size | 5 [127] or 6 [152] |
| Finish | Stainless Steel (Standard), Polished Nickel (Optional) |
| Mounting | Round |
| Dimensions | Height: 2 [51] or 2-1/4 [57] |
| Open Area | 1.9 [12.3] sq in |
| Compliance | ADA, Ligature Resistant, Vandal Proof. |
