DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ415-BZ1 — Floor and Shower Drain with EZ1 TechnologyZ415-BZ1

Zurn Floor and Shower Drain (Drainage). Model Z415-BZ1. Includes integrated 'Type B' light duty, heel proof strainer; Features up to 1" [25] vertical post pour adjustment; Combination invertible membrane clamp and adjustable collar with seepage slots; Strainer open area ranges from 6-1/4 to 20 sq. in [40-129 cm2]. material: Dura-coated cast iron

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ415-BZ1.pdfData sheet

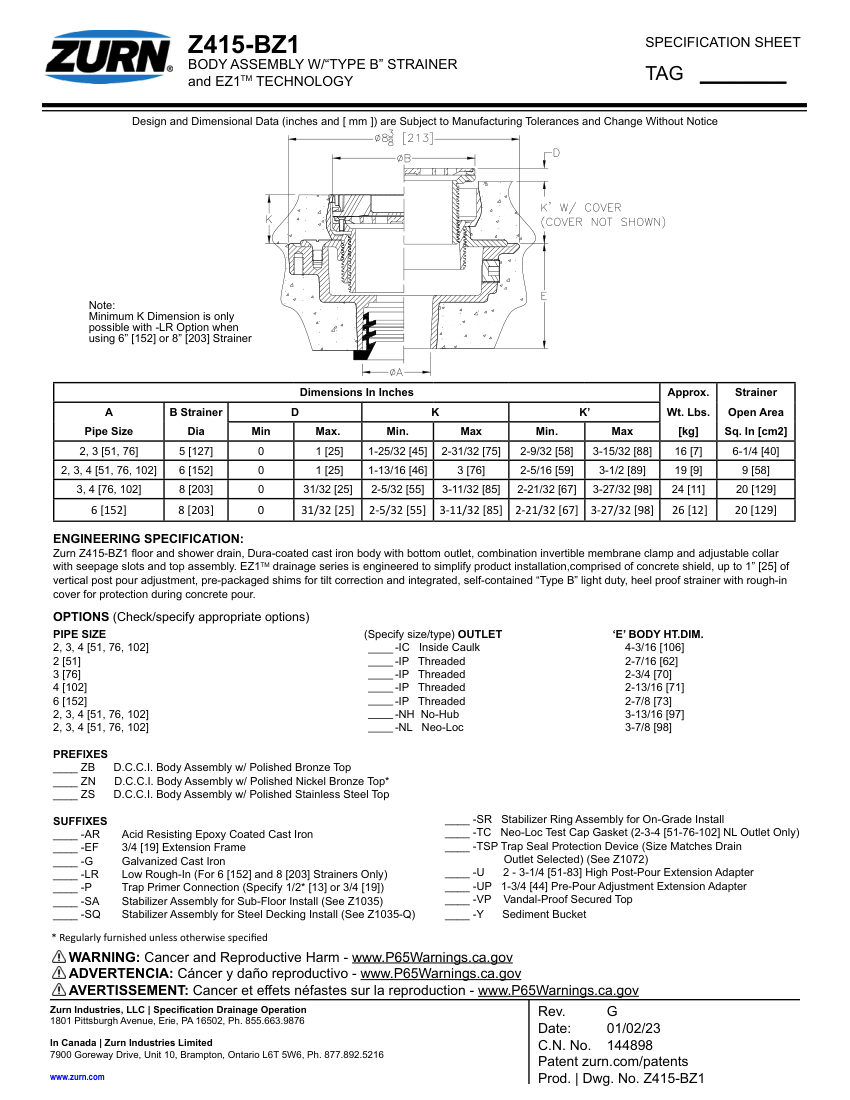

Zurn Z415-BZ1 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z415-BZ1
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ415-BZ1
DescriptionZurn Floor and Shower Drain (Drainage). Model Z415-BZ1. Includes integrated 'Type B' light duty, heel proof strainer; Features up to 1" [25] vertical post pour adjustment; Combination invertible membrane clamp and adjustable collar with seepage slots; Strainer open area ranges from 6-1/4 to 20 sq. in [40-129 cm2]. material: Dura-coated cast iron
Connection size2, 3, 4, 6 [51, 76, 102, 152] mm
End connectionBottom outlet (Inside Caulk, Threaded, No-Hub, Neo-Loc)
FinishPolished Bronze, Polished Nickel Bronze, Polished Stainless Steel, Galvanized
MountingEZ1 Technology, Concrete shield,
