DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ415-LRS — LigatureZ415-LRS

Zurn Floor and shower drain (Drainage). Model Z415-LRS. Ligature resistant, heel-proof, and vandal proof strainer; Combination invertible membrane clamp and adjustable collar with seepage slots

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ415-LRS.pdfData sheet

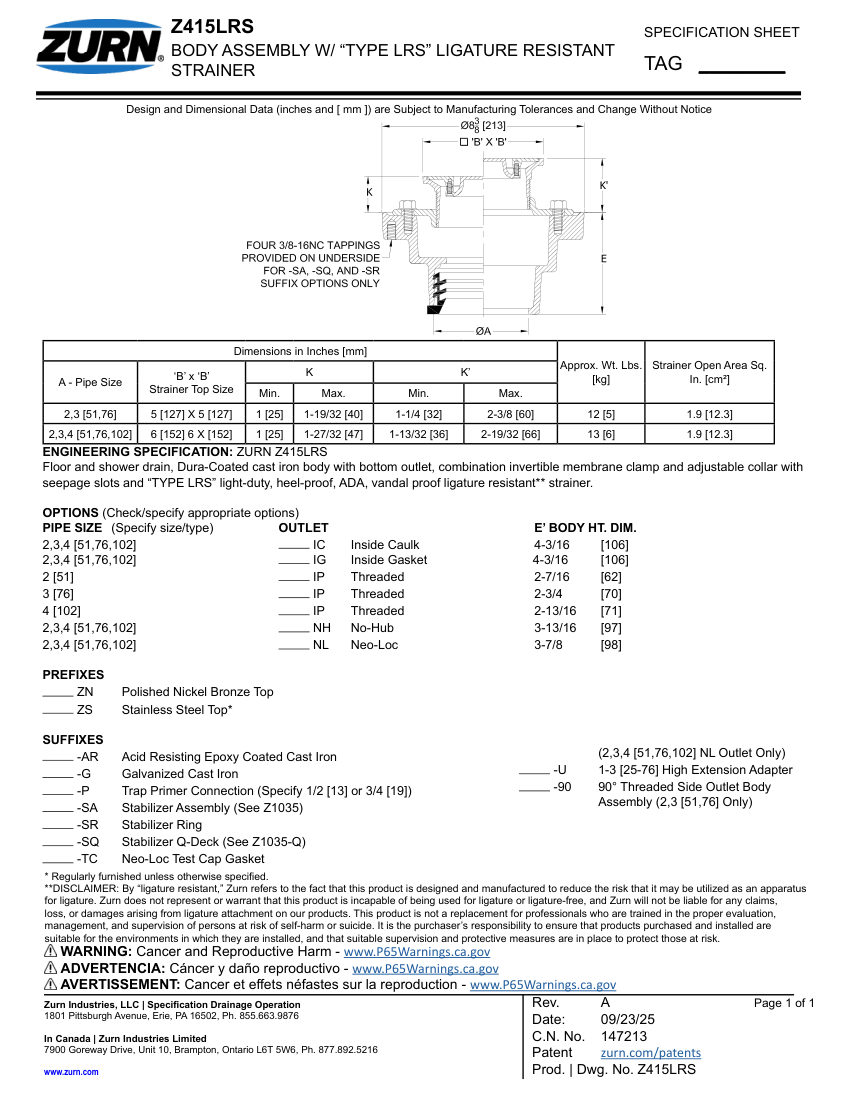

Zurn Z415-LRS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z415-LRS
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ415-LRS
DescriptionZurn Floor and shower drain (Drainage). Model Z415-LRS. Ligature resistant, heel-proof, and vandal proof strainer; Combination invertible membrane clamp and adjustable collar with seepage slots
Strainer open area1.9 sq. in. [12.3 cm²]
Approximate weight12-13 lbs [5-6 kg]. material: Dura-Coated cast iron body, stainless steel top
Connection size2, 3, 4 [51, 76, 102] mm
End connectionBottom outlet (Inside Caulk, Inside Gasket, Threaded, No-Hub, Neo-Loc)
FinishStainless Steel Top (Standard), Polished Nickel Bronze Top (Option)
MountingFloor
DimensionsStrainer Top: 5x5 [127x127]
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
