DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ415-SZ1 — Floor Drain with EZ1™ TechnologyZ415-SZ1

Zurn Floor Drain (Drainage). Model Z415-SZ1. Features EZ1 Technology with concrete shield and up to 1" [25] vertical post-pour adjustment; Includes integrated self-contained Type S nickel bronze light duty, heel-proof strainer; Body assembly includes combination invertible membrane clamp and adjustable collar with seagle slots; Available in pipe sizes 2, 3, 4, and 6 inches [51, 76, 102, 152 mm]. material: Dura-coated cast iron body, nickel bronze strainer

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ415-SZ1.pdfData sheet

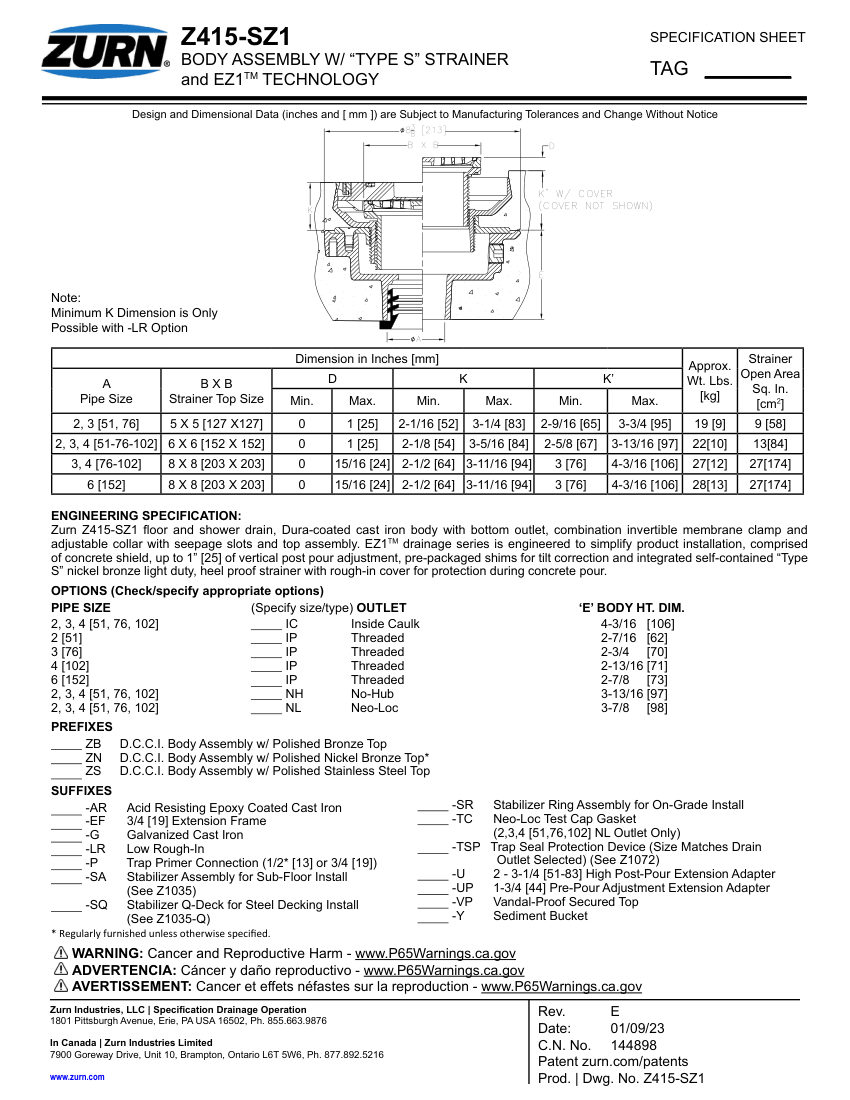

Zurn Z415-SZ1 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z415-SZ1
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ415-SZ1
DescriptionZurn Floor Drain (Drainage). Model Z415-SZ1. Features EZ1 Technology with concrete shield and up to 1" [25] vertical post-pour adjustment; Includes integrated self-contained Type S nickel bronze light duty, heel-proof strainer; Body assembly includes combination invertible membrane clamp and adjustable collar with seagle slots; Available in pipe sizes 2, 3, 4, and 6 inches [51, 76, 102, 152 mm]. material: Dura-coated cast iron body, nickel bronze strainer
Connection size2, 3, 4, 6 [51, 76, 102, 152] mm
End connectionInside Caulk, Threaded, No-Hub, Neo-Loc
FinishPolished Nickel Bronze (d
