DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ415-SZ1-DP — Square Deck Plate Drain with EZ1 TechnologyZ415-SZ1-DP

Zurn Floor and Shower Drain (Drainage). Model Z415-SZ1-DP. Features EZ1 Technology with concrete shield for up to 1" [25] vertical post-pour adjustment; Includes integrated self-contained 'Type S' light duty strainer with rough-in cover; Strainer open area is 9 sq. in. [58 cm2]; Approximate weight is 16 lbs [7 kg]. material: Dura-Coated cast iron body, stainless steel deck plate

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ415-SZ1-DP.pdfData sheet

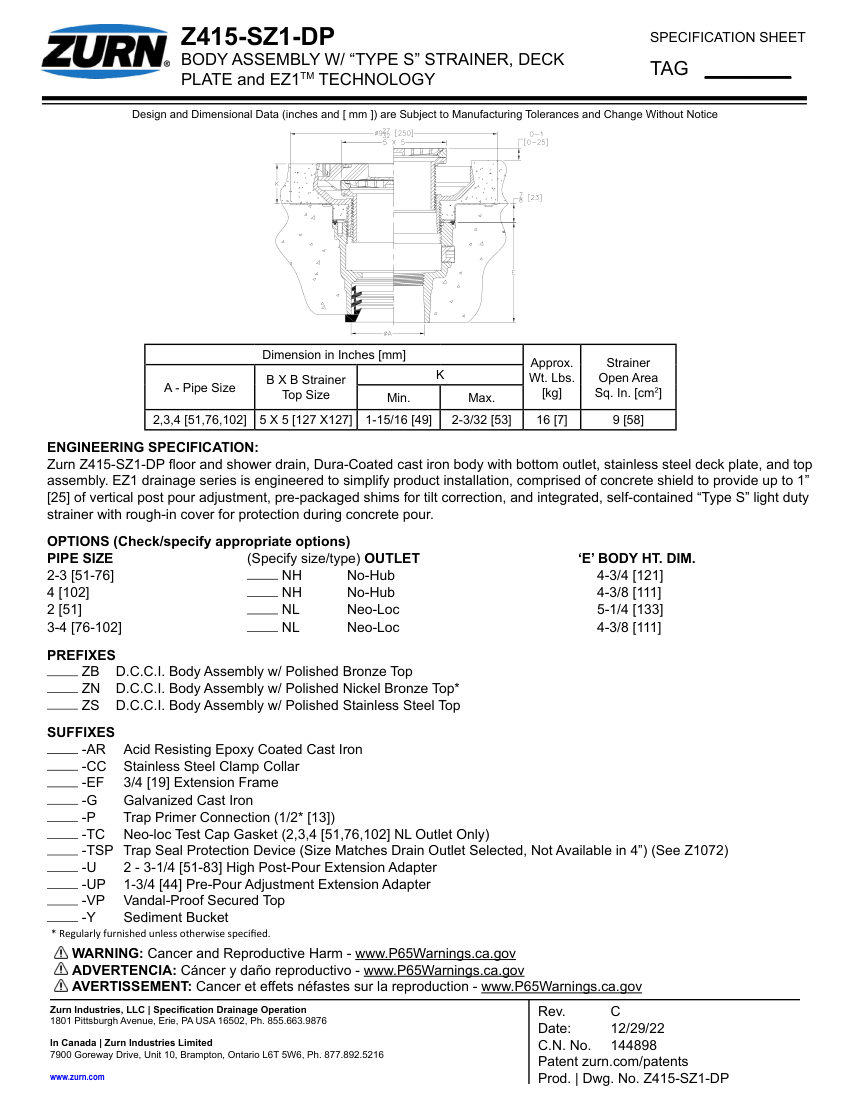

Zurn Z415-SZ1-DP cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z415-SZ1-DP
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ415-SZ1-DP
DescriptionZurn Floor and Shower Drain (Drainage). Model Z415-SZ1-DP. Features EZ1 Technology with concrete shield for up to 1" [25] vertical post-pour adjustment; Includes integrated self-contained 'Type S' light duty strainer with rough-in cover; Strainer open area is 9 sq. in. [58 cm2]; Approximate weight is 16 lbs [7 kg]. material: Dura-Coated cast iron body, stainless steel deck plate
Connection size2, 3, 4 [51, 76, 102] mm
End connectionNo-Hub (NH) or Neo-Loc (NL)
FinishPolished Stainless Steel Top
MountingDeck Plate
Dimensions5 X 5 [127 X 127] in [mm] Strainer Top Size.
