ZurnZ415D

Zurn Floor and shower drain (Drainage). Model Z415D. Body assembly with Type D strainer; Light-duty solid hinged strainer; Seepage slots in adjustable collar; Available in 2, 3, 4, and 6 inch pipe sizes. material: Dura-Coated cast iron body, nickel bronze strainer

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ415D.pdfData sheet

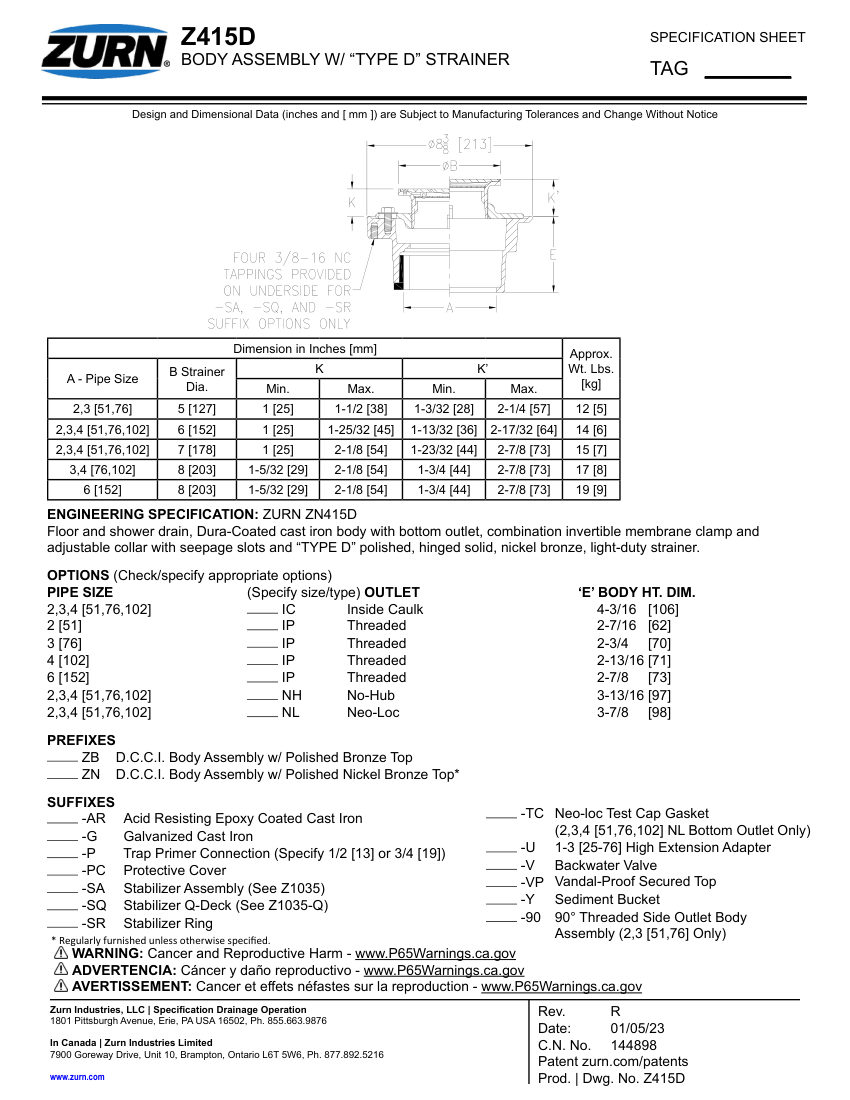

Zurn Z415D cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z415D
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ415D
DescriptionZurn Floor and shower drain (Drainage). Model Z415D. Body assembly with Type D strainer; Light-duty solid hinged strainer; Seepage slots in adjustable collar; Available in 2, 3, 4, and 6 inch pipe sizes. material: Dura-Coated cast iron body, nickel bronze strainer
Connection size2, 3, 4, 6 [51, 76, 102, 152] mm
End connectionBottom outlet (Inside Caulk, Threaded, No-Hub, Neo-Loc)
FinishPolished Nickel Bronze
MountingInvertible membrane clamp and adjustable collar
DimensionsStrainer Dia: 5-8 [127-203] mm
Body Height2-7/16 to 4-3/16 [62-106] mm.
