DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ415G

Zurn Floor and shower drain (Drainage). Model Z415G. Includes 'Type G' strainer with dome grate; Features combination invertible membrane clamp and adjustable collar with seepage slots; Available with Inside Caulk, Threaded, No-Hub, or Neo-Loc outlets

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ415G.pdfData sheet

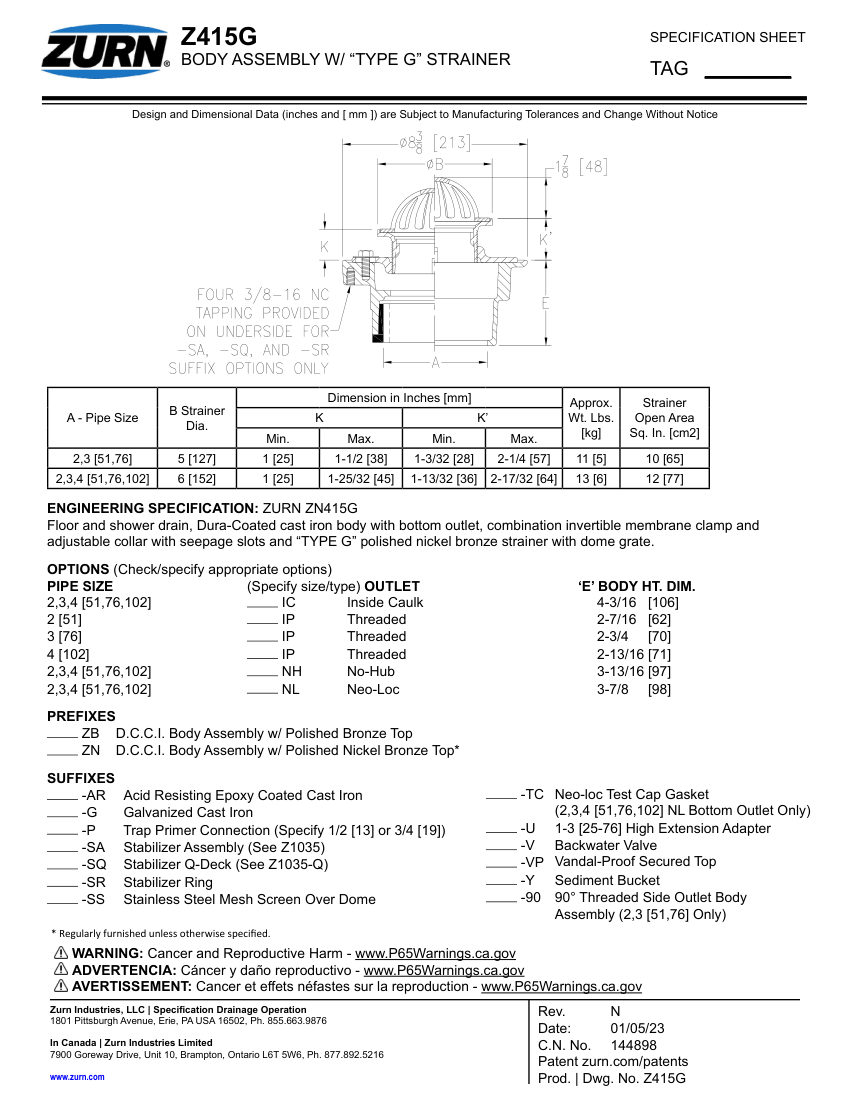

Zurn Z415G cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z415G
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ415G
DescriptionZurn Floor and shower drain (Drainage). Model Z415G. Includes 'Type G' strainer with dome grate; Features combination invertible membrane clamp and adjustable collar with seepage slots; Available with Inside Caulk, Threaded, No-Hub, or Neo-Loc outlets
Approximate weight11-13 lbs [5-6 kg]. material: Dura-Coated cast iron body, polished nickel bronze strainer
Connection size2, 3, 4 [51, 76, 102] mm
End connectionBottom outlet
FinishPolished Nickel Bronze
MountingFloor
DimensionsStrainer Dia: 5-6 [127-152] mm
Body Height2-7/16 to 4-3/16 [62-106] mm.
