ZurnZ415H-LR — Ligature Resistant Round Drain for Vinyl FlooringZ415H-LR

Zurn Floor and shower drain (Drainage). Model Z415H-LR. Ligature resistant, heel-proof, and vandal-proof strainer; Strainer open area 1.9 in² [12.3 cm²]; Includes combination invertible membrane clamp and adjustable collar; Available with Threaded, No-Hub, or Neo-Loc outlets. material: Dura-Coated cast iron body, polished nickel bronze strainer

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ415H-LR.pdfData sheet

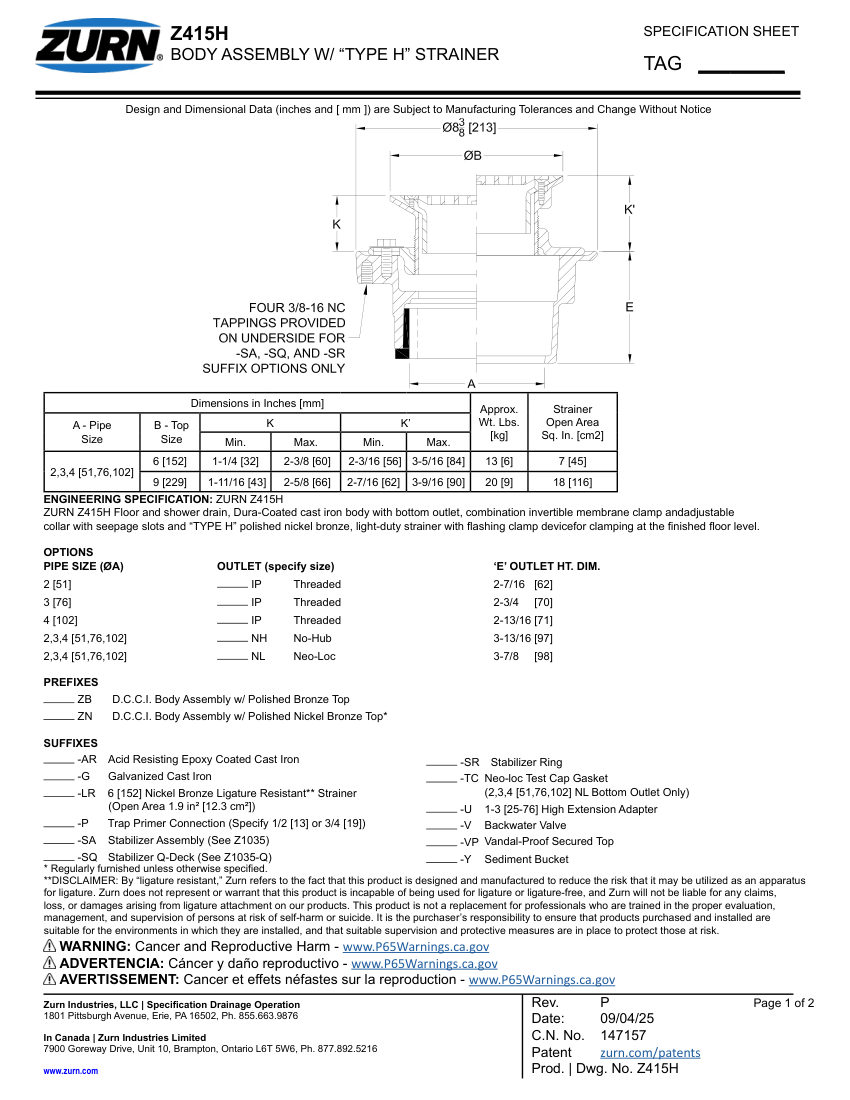

Zurn Z415H-LR cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z415H-LR
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ415H-LR
DescriptionZurn Floor and shower drain (Drainage). Model Z415H-LR. Ligature resistant, heel-proof, and vandal-proof strainer; Strainer open area 1.9 in² [12.3 cm²]; Includes combination invertible membrane clamp and adjustable collar; Available with Threaded, No-Hub, or Neo-Loc outlets. material: Dura-Coated cast iron body, polished nickel bronze strainer
Connection size2, 3, 4 [51, 76, 102] inches
End connectionThreaded, No-Hub, or Neo-Loc bottom outlet
FinishPolished nickel bronze
MountingBottom outlet with flashing clamp device
DimensionsTop Size 6 [152] inches; Weight 13 [6] lbs.

Also cataloged as: Z415H
