ZurnZ415J — Z415J Finish Floor Shower DrainZ415J

Zurn Floor Shower Drain (Drainage). Model Z415J. Body assembly with Type J strainer; Combination invertible membrane clamp and adjustable collar; Strainer is rectangular, light-duty, and heel-proof; Strainer open area ranges from 12 to 66 sq. in. [72 to 426 cm2]. material: Dura-Coated cast iron body, nickel bronze strainer

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ415J.pdfData sheet

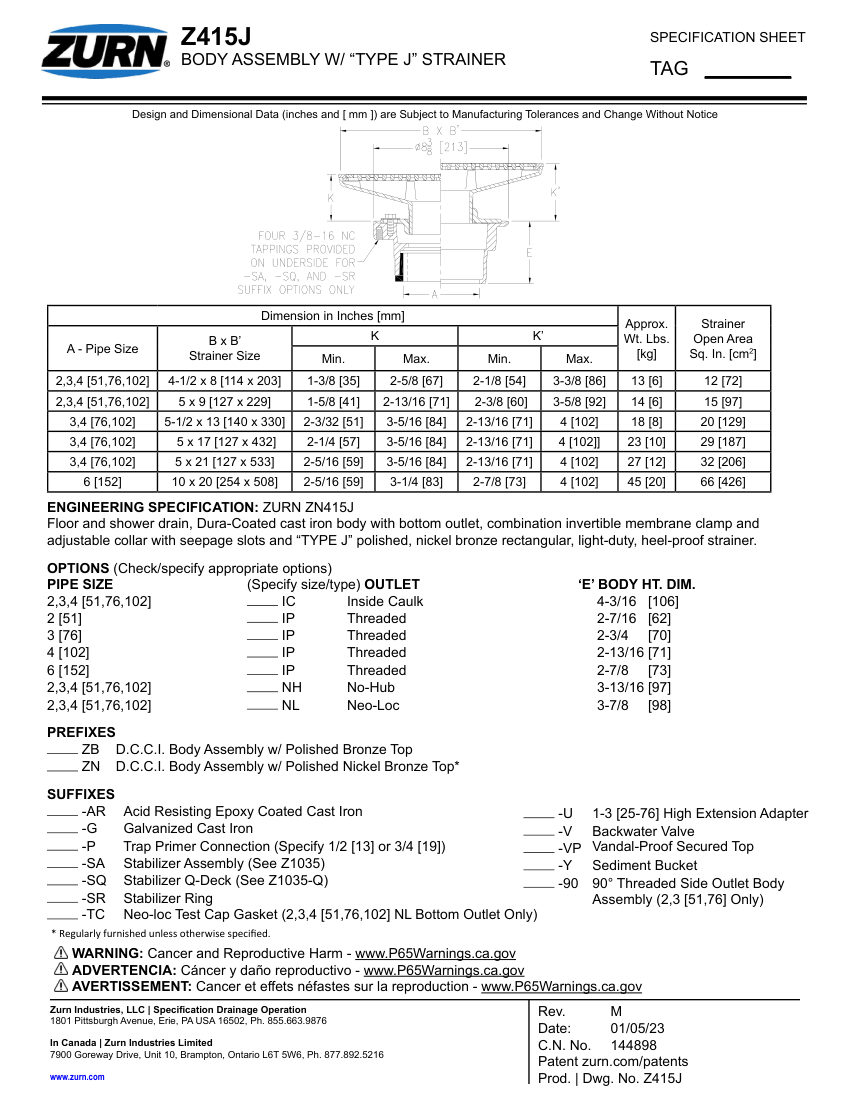

Zurn Z415J cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z415J
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ415J
DescriptionZurn Floor Shower Drain (Drainage). Model Z415J. Body assembly with Type J strainer; Combination invertible membrane clamp and adjustable collar; Strainer is rectangular, light-duty, and heel-proof; Strainer open area ranges from 12 to 66 sq. in. [72 to 426 cm2]. material: Dura-Coated cast iron body, nickel bronze strainer
Connection size2, 3, 4, 6 [51, 76, 102, 152] mm
End connectionBottom outlet (Threaded, No-Hub, Neo-Loc, or Inside Caulk)
FinishPolished Nickel Bronze
MountingFloor
DimensionsStrainer sizes range from 4-1/2 x 8 [114 x 203] to 10 x 20 [254 x 508] inches.
