DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ415K

Zurn Floor and shower drain (Drainage). Model Z415K. Includes 'Type K' angular, light-duty strainer; Features combination invertible membrane clamp and adjustable collar with seepage slots

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ415K.pdfData sheet

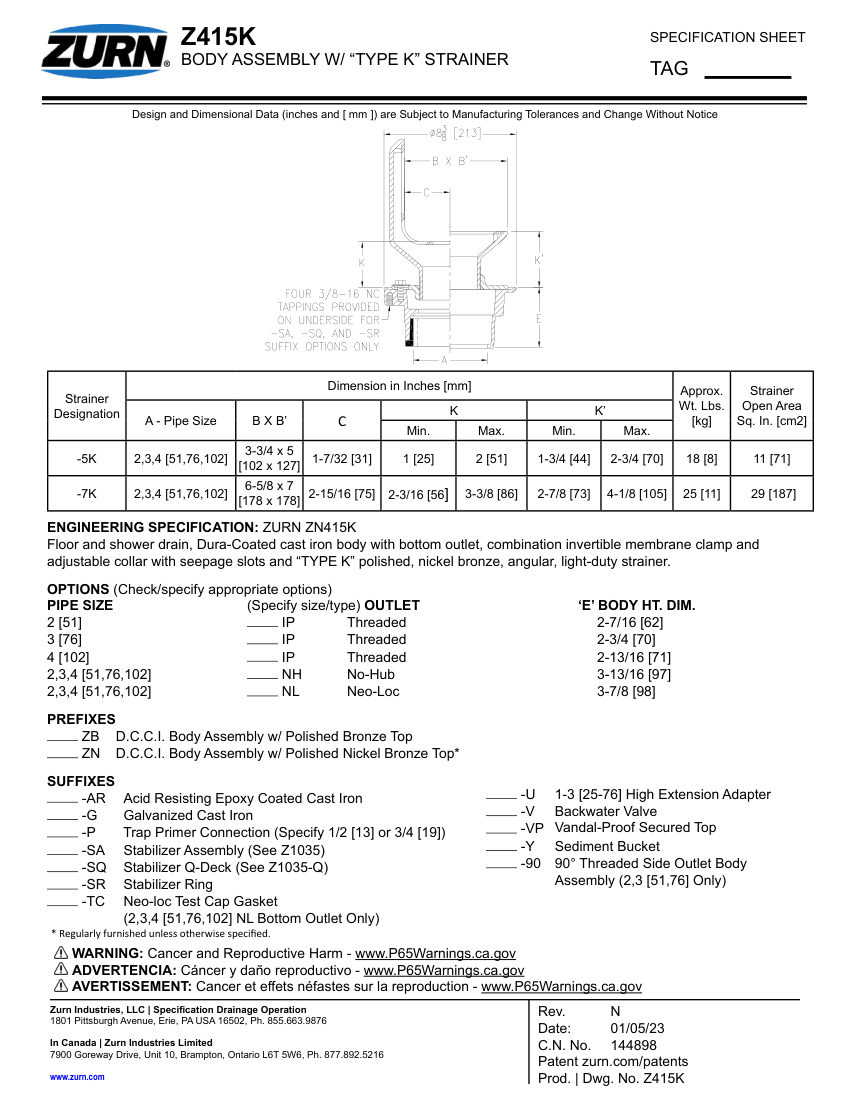

Zurn Z415K cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z415K
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ415K
DescriptionZurn Floor and shower drain (Drainage). Model Z415K. Includes 'Type K' angular, light-duty strainer; Features combination invertible membrane clamp and adjustable collar with seepage slots
Strainer open area11 sq. in. [71 cm2] for -5K, 29 sq. in. [187 cm2] for -7K
Approximate weight18 lbs [8 kg] for -5K, 25 lbs [11 kg] for -7K. material: Dura-Coated cast iron body, polished nickel bronze strainer
Connection size2, 3, 4 [51, 76, 102] mm
End connectionThreaded, No-Hub, Neo-Loc
FinishPolished Nickel Bronze
MountingBottom outlet
DimensionsB x B': 3-3/4 x 5 [102 x 127] in (for -5
