DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ5001 — Sundara™ Reef Handwashing SystemZ5001

Zurn Double Basin Hand Washing System (Sundara). Model Z5001.02. Constructed of Sundara solid surface resin and aluminum trihydrate; Includes 0.5 gpm spray aerator faucet and 1/2" quarter turn supply stops; Shroud made of satin finished type 304, 18 gage stainless steel; ADA compliant and meets ANSI A117.1 requirements. material: Sundara solid surface resin with aluminum trihydrate; Type 304 stainless steel shroud

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ5001.pdfData sheet

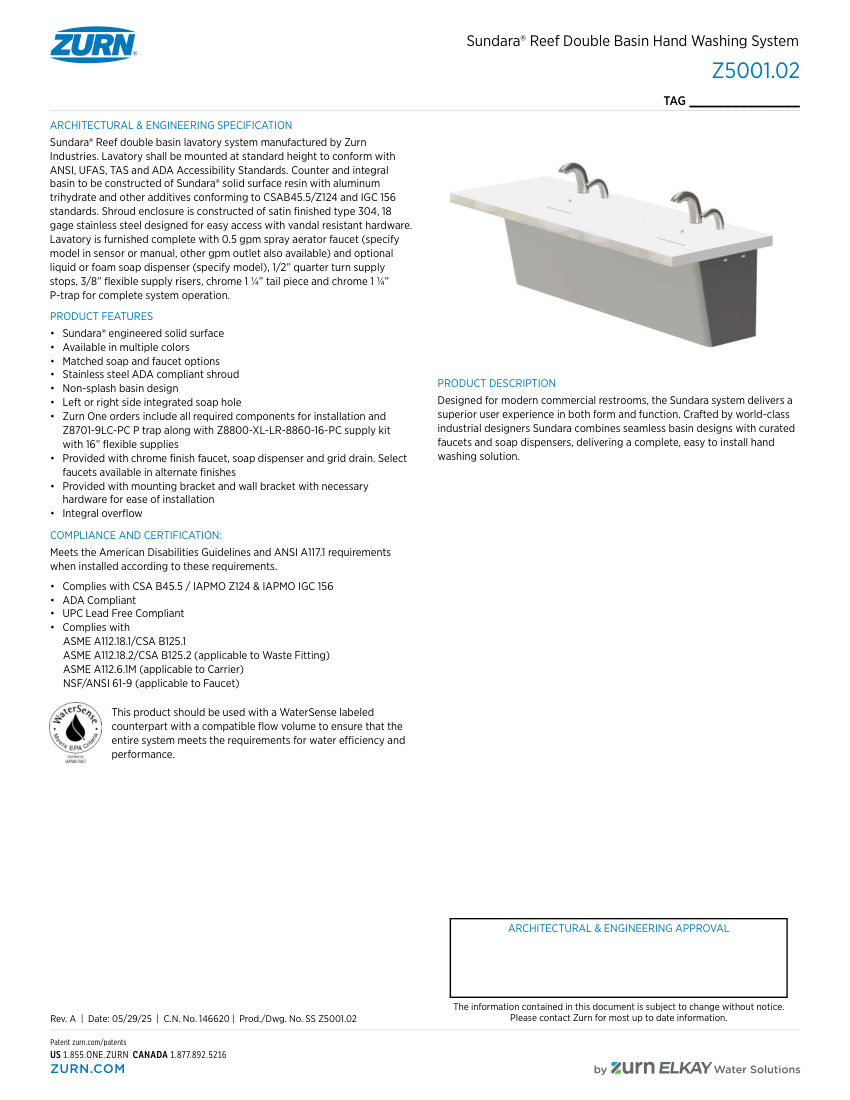

Zurn Z5001 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z5001
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ5001
DescriptionZurn Double Basin Hand Washing System (Sundara). Model Z5001.02. Constructed of Sundara solid surface resin and aluminum trihydrate; Includes 0.5 gpm spray aerator faucet and 1/2" quarter turn supply stops; Shroud made of satin finished type 304, 18 gage stainless steel; ADA compliant and meets ANSI A117.1 requirements. material: Sundara solid surface resin with aluminum trihydrate; Type 304 stainless steel shroud
Connection size1/2" supply stops; 3/8" flexible supply risers; 1 1/4" tail piece; 1 1/4" P-trap
End connection1/2" quarter turn supply stops
Flow Rate0.5 gpm (1.9 LPM) standard
