DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ5003 — Sundara™ Drift Handwashing SystemZ5003

Zurn Single Basin Hand Washing System (Sundara Drift). Model Z5003.01. Sensor-operated faucet with 0.5 gpm flow rate; Integral basin with non-splash design and overflow; Stainless steel ADA compliant shroud with vandal resistant hardware; Includes 1/2" quarter turn supply stops and 3/8" flexible risers. material: Sundara solid surface resin with aluminum trihydrate; Type 304 stainless steel shroud

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ5003.pdfData sheet

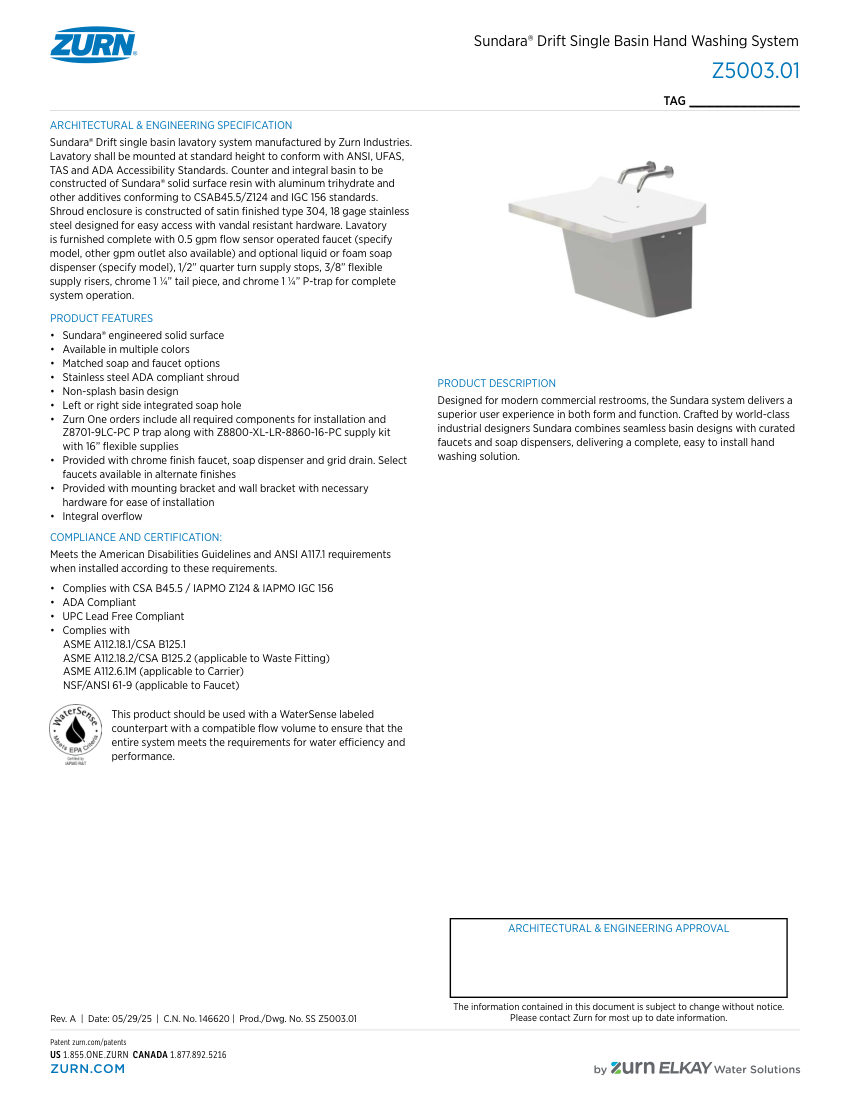

Zurn Z5003 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z5003
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ5003
DescriptionZurn Single Basin Hand Washing System (Sundara Drift). Model Z5003.01. Sensor-operated faucet with 0.5 gpm flow rate; Integral basin with non-splash design and overflow; Stainless steel ADA compliant shroud with vandal resistant hardware; Includes 1/2" quarter turn supply stops and 3/8" flexible risers. material: Sundara solid surface resin with aluminum trihydrate; Type 304 stainless steel shroud
Connection size1/2" supply stops; 3/8" flexible supply risers; 1 1/4" tail piece; 1 1/4" P-trap
End connectionWall mounted
Flow Rate0.5 gpm (1.9 LPM) standard; 1.5 gpm (5.7 LPM) option; finish:
