ZurnZ521

Zurn Top Adjustable Heavy-Duty Drain (Drainage). Model Z521. 12-1/4 in [311 mm] diameter top drain; Includes seepage pan and membrane flashing clamp; Adjustable extension frame with heavy-duty tractor grate; Available in 2, 3, 4, 6, and 8 inch pipe sizes. material: Dura-Coated cast iron body, heavy-duty tractor grate

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ521.pdfData sheet

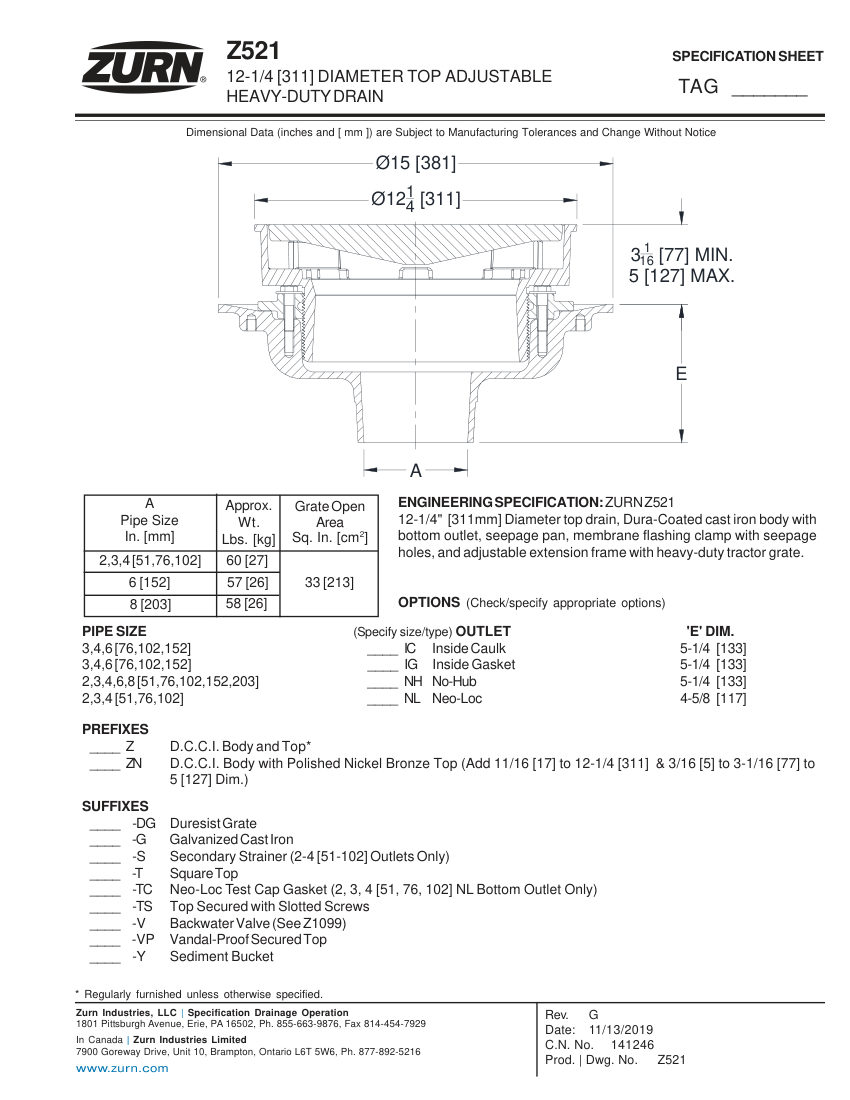

Zurn Z521 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z521
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ521
DescriptionZurn Top Adjustable Heavy-Duty Drain (Drainage). Model Z521. 12-1/4 in [311 mm] diameter top drain; Includes seepage pan and membrane flashing clamp; Adjustable extension frame with heavy-duty tractor grate; Available in 2, 3, 4, 6, and 8 inch pipe sizes. material: Dura-Coated cast iron body, heavy-duty tractor grate
Connection size2, 3, 4, 6, 8 in [51, 76, 102, 152, 203 mm]
End connectionBottom outlet (IC, IG, NH, NL options)
FinishDura-Coated
MountingTop adjustable with extension frame
Dimensions12-1/4 in [311 mm] diameter, 3-1/16 in [77 mm] min height, 5 in [127 mm] max height.
