DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ526

Zurn Top Adjustable Heavy-Duty Drain (Drainage). Model Z526. 12-1/4 in [311 mm] diameter top drain; Dura-Coated cast iron body; Includes seepage pan and membrane flashing clamp; Adjustable extension frame with heavy-duty tractor grate. material: Dura-Coated cast iron body, heavy-duty tractor grate

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ526.pdfData sheet

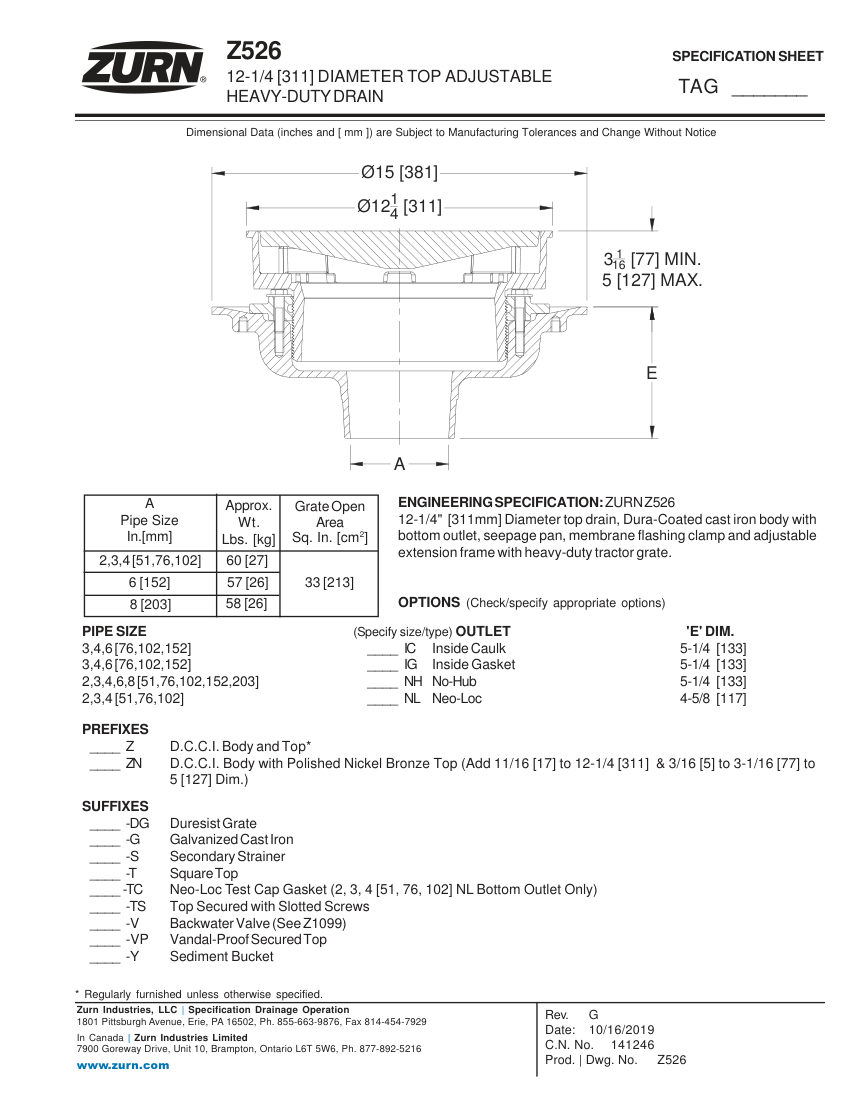

Zurn Z526 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z526
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ526
DescriptionZurn Top Adjustable Heavy-Duty Drain (Drainage). Model Z526. 12-1/4 in [311 mm] diameter top drain; Dura-Coated cast iron body; Includes seepage pan and membrane flashing clamp; Adjustable extension frame with heavy-duty tractor grate. material: Dura-Coated cast iron body, heavy-duty tractor grate
Connection size2, 3, 4, 6, 8 in [51, 76, 102, 152, 203 mm]
End connectionBottom outlet (IC, IG, NH, NL options)
FinishDura-Coated
MountingTop adjustable with seepage pan, membrane flashing clamp, and adjustable extension frame
Dimensions12-1/4 in [311 mm] diameter, 15 in [381 mm] grate d
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
