DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ645

Zurn Heavy-Duty Floor Drain (Drainage). Model Z645. 12-1/2" [318mm] square top drain; Internal trap with bronze cleanout plug; Hinged heavy-duty slotted grate with suspended aluminum sediment bucket

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ645.pdfData sheet

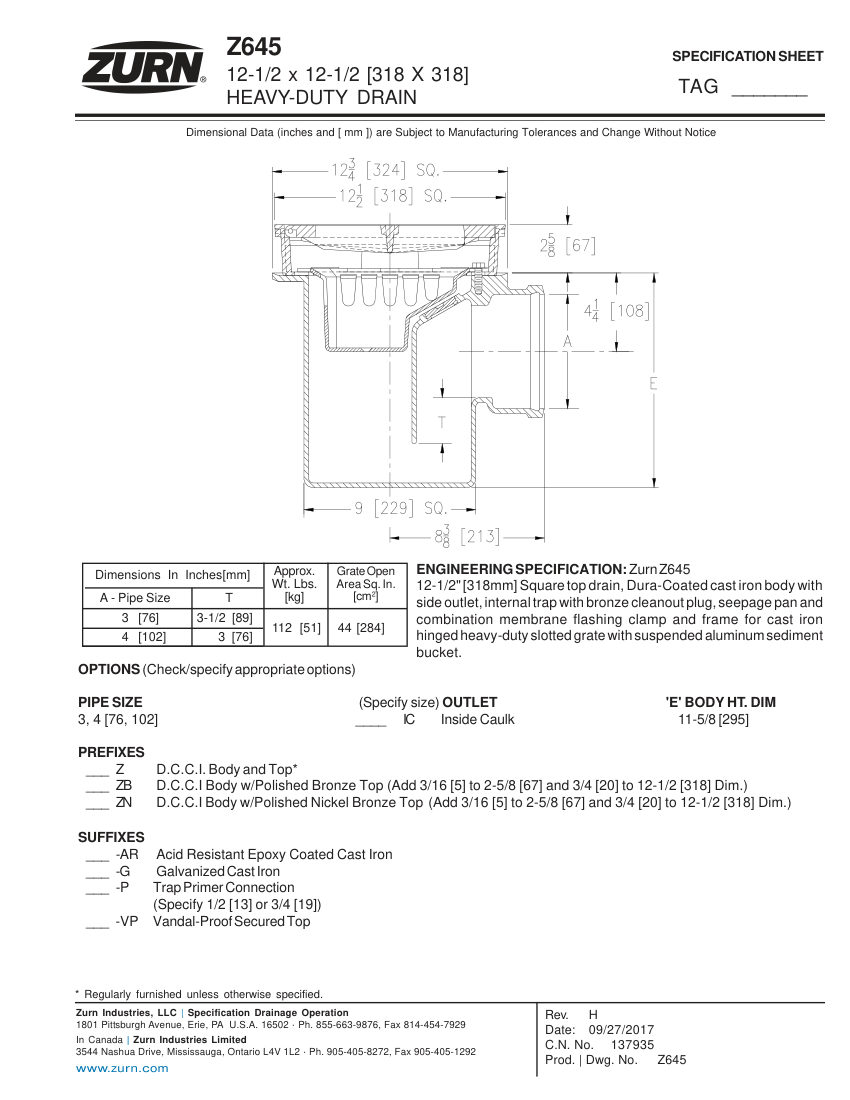

Zurn Z645 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z645
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ645
DescriptionZurn Heavy-Duty Floor Drain (Drainage). Model Z645. 12-1/2" [318mm] square top drain; Internal trap with bronze cleanout plug; Hinged heavy-duty slotted grate with suspended aluminum sediment bucket
Pipe sizes available3" [76mm] and 4" [102mm]. material: Dura-Coated cast iron body, bronze cleanout plug, aluminum sediment bucket
Connection size3 [76] or 4 [102] in
End connectionSide outlet
FinishDura-Coated (Standard), Polished Bronze, Polished Nickel Bronze, Acid Resistant Epoxy, Galvanized
MountingTop drain with internal trap, seepage pan, and combination membrane flashing clamp
