DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ706-HDG — Z706Z706-HDG

Zurn Frame and Grate System (Drainage). Model Z706-HDG. Grate load classification is Class C per DIN EN1433; Grate open area is 28.1 sq. in per ft [59,463 sq. mm per meter]; Frame thickness is .105" [2.66mm]; Supplied in 20" [508mm] nominal lengths. material: Galvanized Ductile Iron Grate, Heavy-Duty Carbon Steel Galvanized Frame

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ706-HDG.pdfData sheet

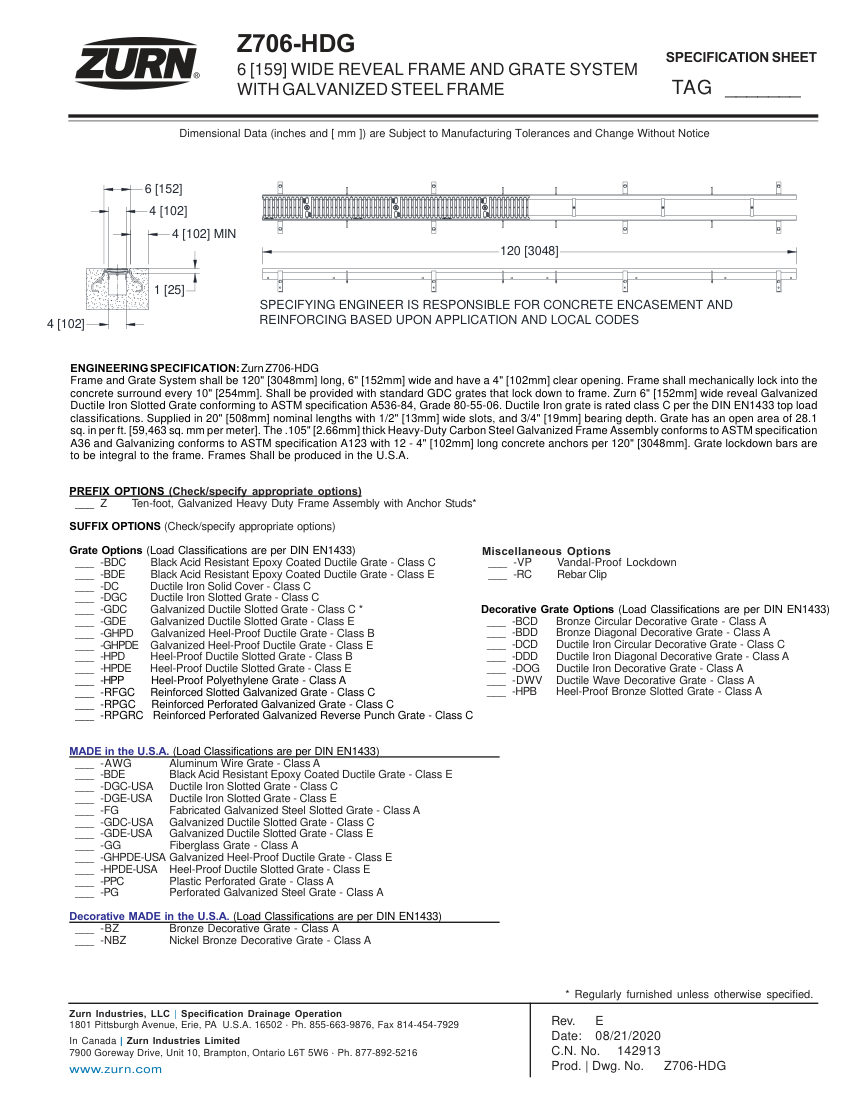

Zurn Z706-HDG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z706-HDG
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ706-HDG
DescriptionZurn Frame and Grate System (Drainage). Model Z706-HDG. Grate load classification is Class C per DIN EN1433; Grate open area is 28.1 sq. in per ft [59,463 sq. mm per meter]; Frame thickness is .105" [2.66mm]; Supplied in 20" [508mm] nominal lengths. material: Galvanized Ductile Iron Grate, Heavy-Duty Carbon Steel Galvanized Frame
FinishGalvanized
MountingMechanically locks into concrete surround every 10" [254mm]
Dimensions120" [3048mm] long, 6" [152mm] wide, 4" [102mm] clear opening
ComplianceASTM A536-84, ASTM A36, ASTM A123, DIN EN1433 Class C.
