ZurnZ712 — Zurn Z712 Frame & Grate for Food ProcessingZ712

Zurn Frame and Grate System (Drainage). Model Z712. 12-inch [305mm] wide reveal with 8-1/2-inch [216mm] clear opening; Ductile iron slotted grate rated Class C per DIN EN1433; Frame constructed from 1/4-inch [6mm] thick carbon steel; Supplied in 24-inch [608mm] nominal lengths. material: Ductile Iron (ASTM A536-84 Grade 80-55-06), HeavyDuty Carbon Steel (ASTM A36)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ712.pdfData sheet

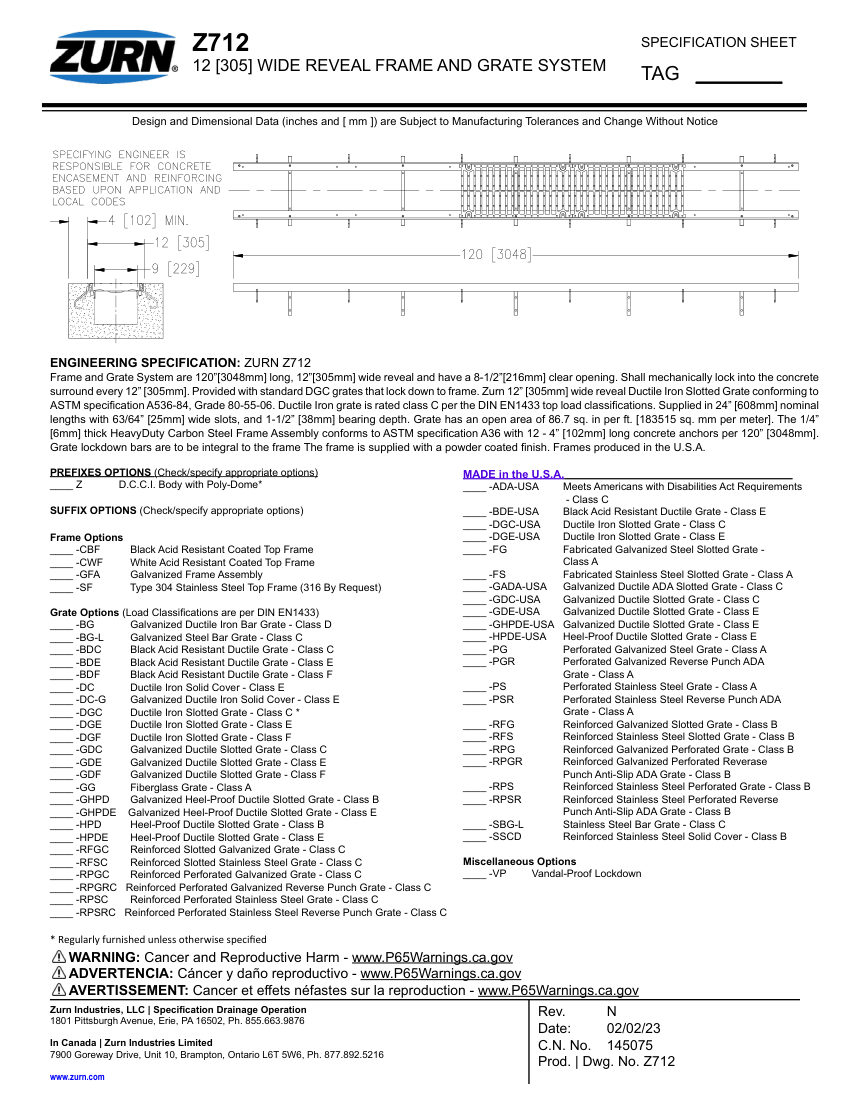

Zurn Z712 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z712
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ712
DescriptionZurn Frame and Grate System (Drainage). Model Z712. 12-inch [305mm] wide reveal with 8-1/2-inch [216mm] clear opening; Ductile iron slotted grate rated Class C per DIN EN1433; Frame constructed from 1/4-inch [6mm] thick carbon steel; Supplied in 24-inch [608mm] nominal lengths. material: Ductile Iron (ASTM A536-84 Grade 80-55-06), HeavyDuty Carbon Steel (ASTM A36)
FinishPowder coated
MountingMechanically locks into concrete every 12 inches
Dimensions120 inches [3048mm] long, 12 inches [305mm] wide reveal, 8-1/2 inches [216mm] clear opening
ComplianceDIN EN1433 Class C, ASTM A536-84
