DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ723 — Frame and Grate SystemZ723

Zurn Frame and Grate System (Drainage). Model Z723. Standard DGC grate with 1.03 [26] wide slots; Open area of 112 sq. in. per ft [237078 sq. mm per meter]; 10 concrete anchors per 80 [2032] length; Rated Class C per DIN EN1433 top load classifications. material: Carbon Steel Frame (ASTM A36), Ductile Iron Grate (ASTM A536-84 Grade 80-55-06)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ723.pdfData sheet

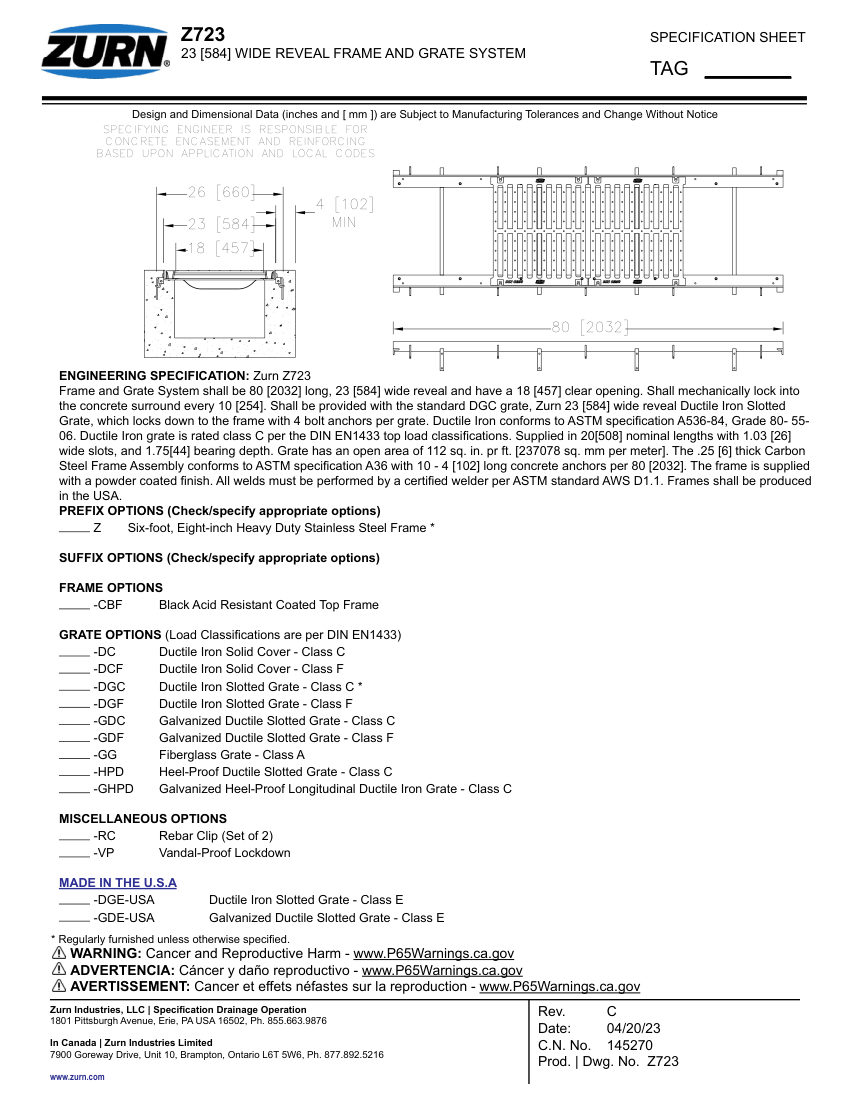

Zurn Z723 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z723
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ723
DescriptionZurn Frame and Grate System (Drainage). Model Z723. Standard DGC grate with 1.03 [26] wide slots; Open area of 112 sq. in. per ft [237078 sq. mm per meter]; 10 concrete anchors per 80 [2032] length; Rated Class C per DIN EN1433 top load classifications. material: Carbon Steel Frame (ASTM A36), Ductile Iron Grate (ASTM A536-84 Grade 80-55-06)
FinishPowder Coated
MountingMechanically locks into concrete surround every 10 [254] mm
Dimensions80 [2032] long, 23 [584] wide reveal, 18 [457] clear opening
ComplianceDIN EN1433 Class C, ASTM A36, ASTM A536-84, AWS D1.1.
