DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ726-HDS — Z726Z726-HDS

Zurn Reveal Frame and Grate System (Drainage). Model Z726-HDS. 26-1/4 [667] wide reveal frame system; 21 [533] clear opening; Ductile Iron Slotted Grate rated Class C per DIN EN1433; 1-1/32 [26] wide slots with 1-3/4 [44] bearing depth. material: Stainless Steel Frame (ASTM A36), Ductile Iron Grate (ASTM A536-84 Grade 80-55-06)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ726-HDS.pdfData sheet

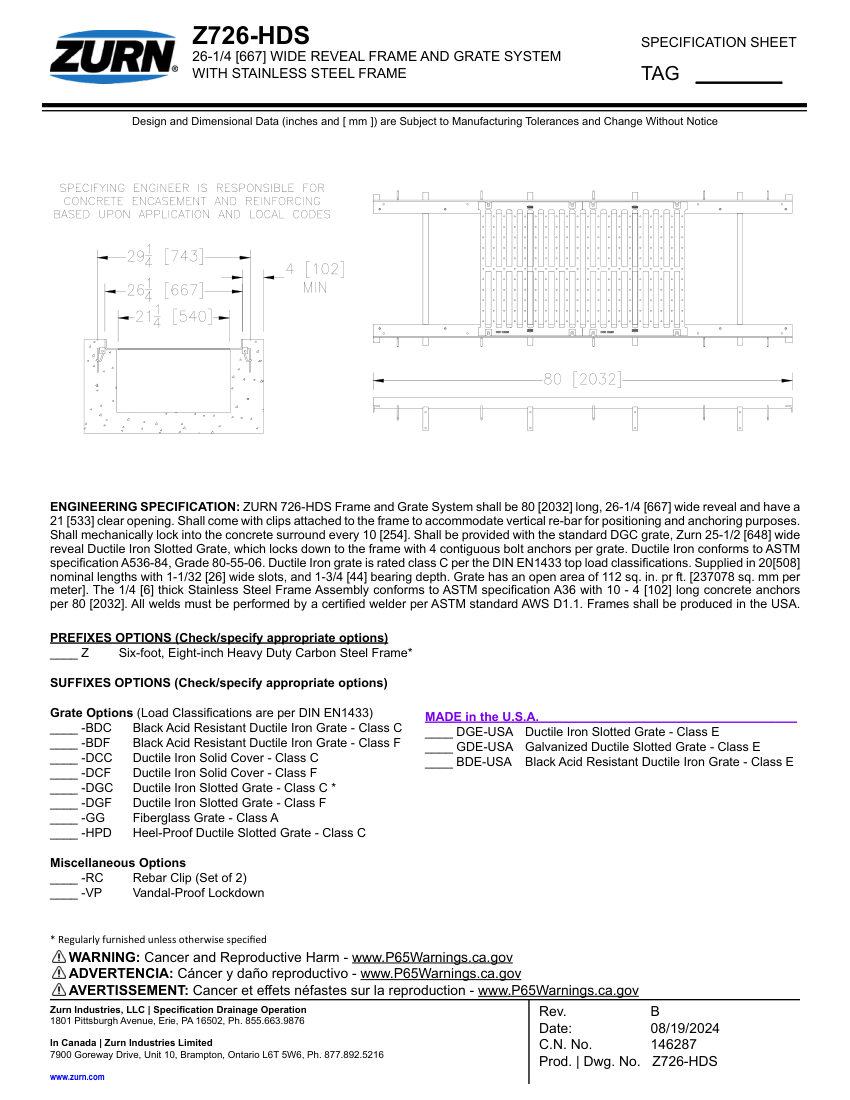

Zurn Z726-HDS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z726-HDS
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ726-HDS
DescriptionZurn Reveal Frame and Grate System (Drainage). Model Z726-HDS. 26-1/4 [667] wide reveal frame system; 21 [533] clear opening; Ductile Iron Slotted Grate rated Class C per DIN EN1433; 1-1/32 [26] wide slots with 1-3/4 [44] bearing depth. material: Stainless Steel Frame (ASTM A36), Ductile Iron Grate (ASTM A536-84 Grade 80-55-06)
FinishStainless Steel Frame, Ductile Iron Grate
MountingMechanical lock into concrete every 10 [254] mm, 10 concrete anchors per 80 [2032] mm
Dimensions80 [2032] L x 26-1/4 [667] W reveal, 21 [533] clear opening
ComplianceDIN EN1433 Class C, ASTM A536-84, AS
