ZurnZ7500-TC — Institutional Shower UnitZ7500-TC

Zurn Institutional Shower Unit (Shower Unit). Model Z7500-TC. TEMP-GARD pressure balancing shower valve with single bronze stem; Stainless steel balancing piston & bottom access integral service stops; Includes chrome plated brass shower head with flow control on institutional bracket; Vandal proof securing screws. material: Stainless steel, bronze, brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ7500-TC.pdfData sheet

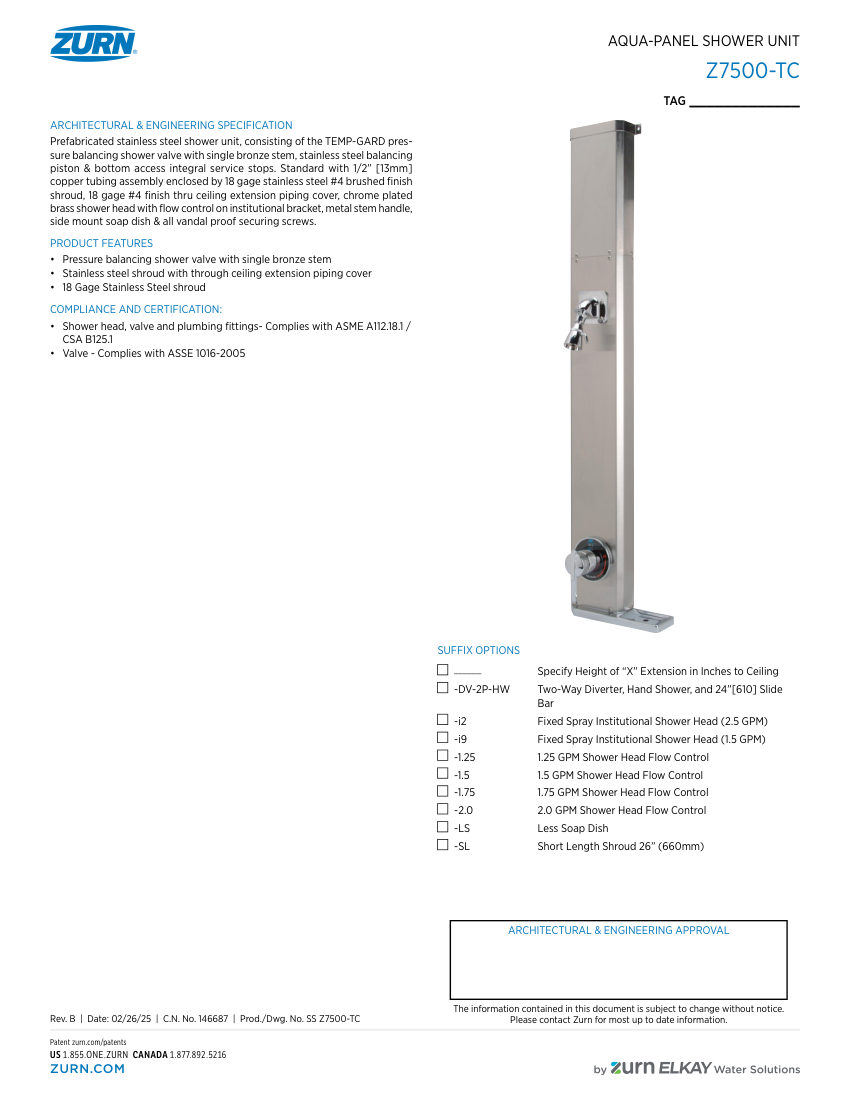

Zurn Z7500-TC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z7500-TC
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ7500-TC
DescriptionZurn Institutional Shower Unit (Shower Unit). Model Z7500-TC. TEMP-GARD pressure balancing shower valve with single bronze stem; Stainless steel balancing piston & bottom access integral service stops; Includes chrome plated brass shower head with flow control on institutional bracket; Vandal proof securing screws. material: Stainless steel, bronze, brass
Connection size1/2" [13mm]
End connectionCopper tubing assembly
Flow Rate2.5 GPM or 1.5 GPM (depending on head option)
Finish18 gage stainless steel #4 brushed finish, chrome plated brass
MountingWall mounted.
