DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ874-12 — Zurn Z874Z874-12

Zurn Trench Drain System (Trench Drain). Model Z874-12. 0% water absorbent HDPE channel; Manning's coefficient of 0.009; Ductile Iron Slotted Grate rated Class C per DIN EN1433; Weight less than 6.6 lbs per linear foot [9.8 kg/m]. material: High Density Polyethylene (HDPE) channel, Ductile Iron grate, Carbon Steel frame

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ874-12.pdfData sheet

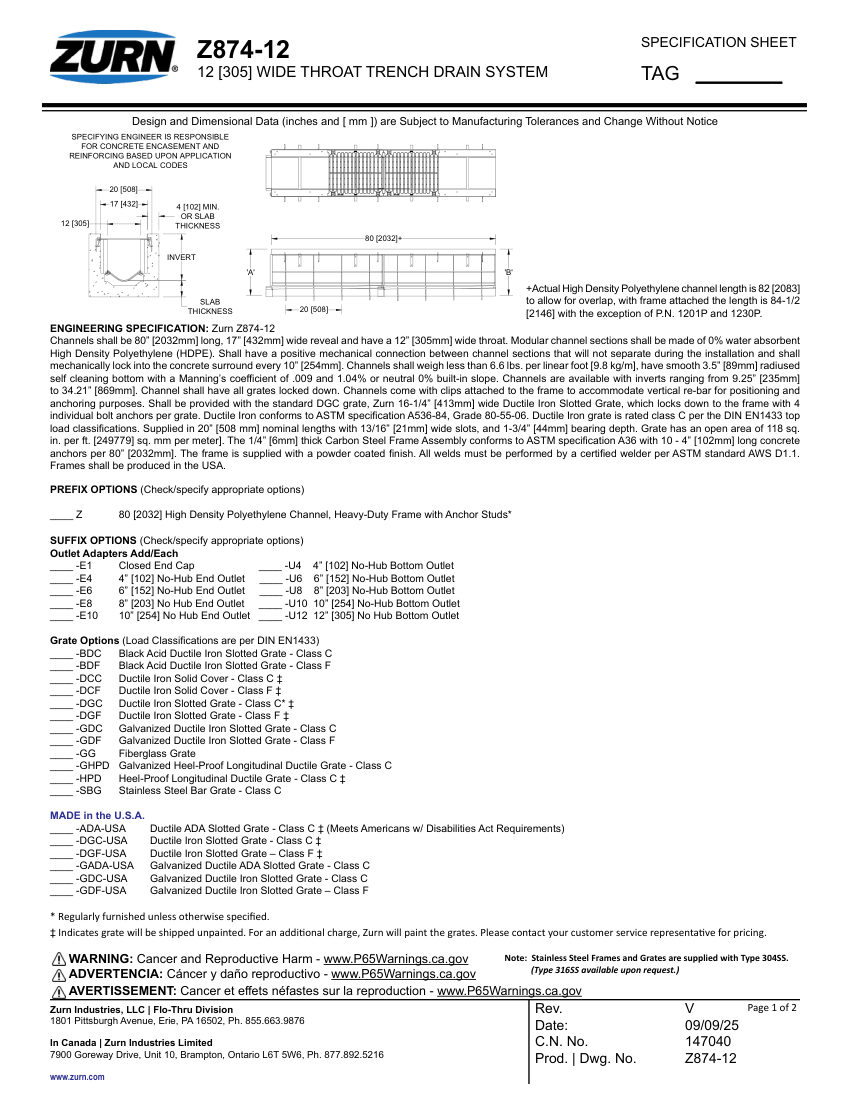

Zurn Z874-12 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z874-12
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ874-12
DescriptionZurn Trench Drain System (Trench Drain). Model Z874-12. 0% water absorbent HDPE channel; Manning's coefficient of 0.009; Ductile Iron Slotted Grate rated Class C per DIN EN1433; Weight less than 6.6 lbs per linear foot [9.8 kg/m]. material: High Density Polyethylene (HDPE) channel, Ductile Iron grate, Carbon Steel frame
Connection size4" to 12" No-Hub End or Bottom Outlet
End connectionMechanical lock, No-Hub adapters
FinishPowder coated frame, Ductile Iron grate
MountingConcrete encasement, 10" [254mm] mechanical lock, 10 concrete anchors per 80" [2032mm]
Dimensions80" [2032mm] l
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
