DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ874-IB

Zurn Inline Catch Basin (Catch Basin). Model Z874-IB. Modular HDPE channel sections with interlocking ends and flat bottom; Basin provided with no slope (neutral); Available in Class C, E, and F grates with H-20 and/or FAA load ratings; ADA compliance available with mechanical lockdown devices. material: HDPE channel, Heavy-Duty steel frame, Ductile Iron Grate

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ874-IB.pdfData sheet

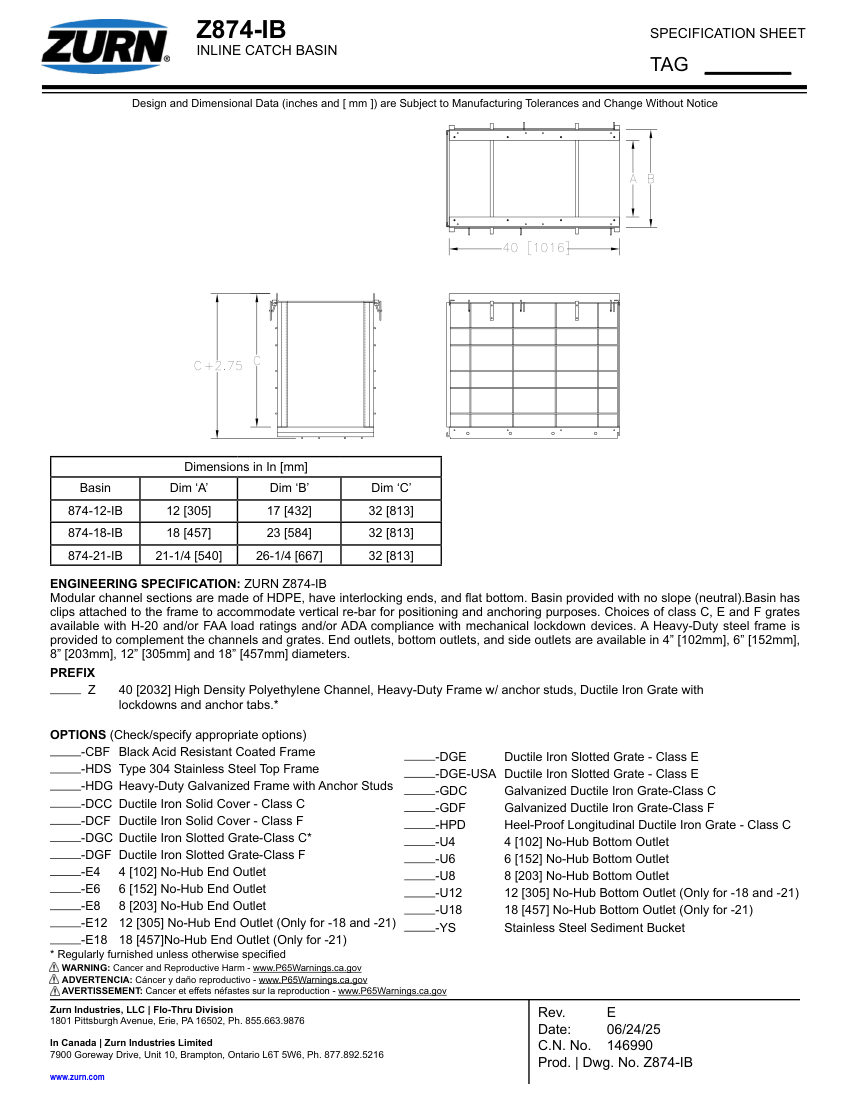

Zurn Z874-IB cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z874-IB
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ874-IB
DescriptionZurn Inline Catch Basin (Catch Basin). Model Z874-IB. Modular HDPE channel sections with interlocking ends and flat bottom; Basin provided with no slope (neutral); Available in Class C, E, and F grates with H-20 and/or FAA load ratings; ADA compliance available with mechanical lockdown devices. material: HDPE channel, Heavy-Duty steel frame, Ductile Iron Grate
Connection size4", 6", 8", 12", 18"
End connectionNo-Hub End/Bottom/Side Outlets
FinishBlack Acid Resistant Coated, Galvanized, or Stainless Steel (Options)
MountingInterlocking ends, anchor studs, vertical re-bar clips; dimens
