DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ874-U-12-HDG — Z874Z874-U-12-HDG

Zurn Utility Trench with Galvanized Steel Frame (Utility Trench). Model Z874-U-12-HDG. Channel material is 0% water absorbent High Density Polyethylene (HDPE); Cover is Galvanized Ductile Iron Solid Cover rated Class C per DIN EN1433; Frame is 1/4 [6] thick Galvanized Carbon Steel conforming to ASTM A36; Channel weight is less than 5.05 lbs [2.29kg] per linear foot. material: HDPE channel, Galvanized Ductile Iron cover, Galvanized Carbon Steel frame

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ874-U-12-HDG.pdfData sheet

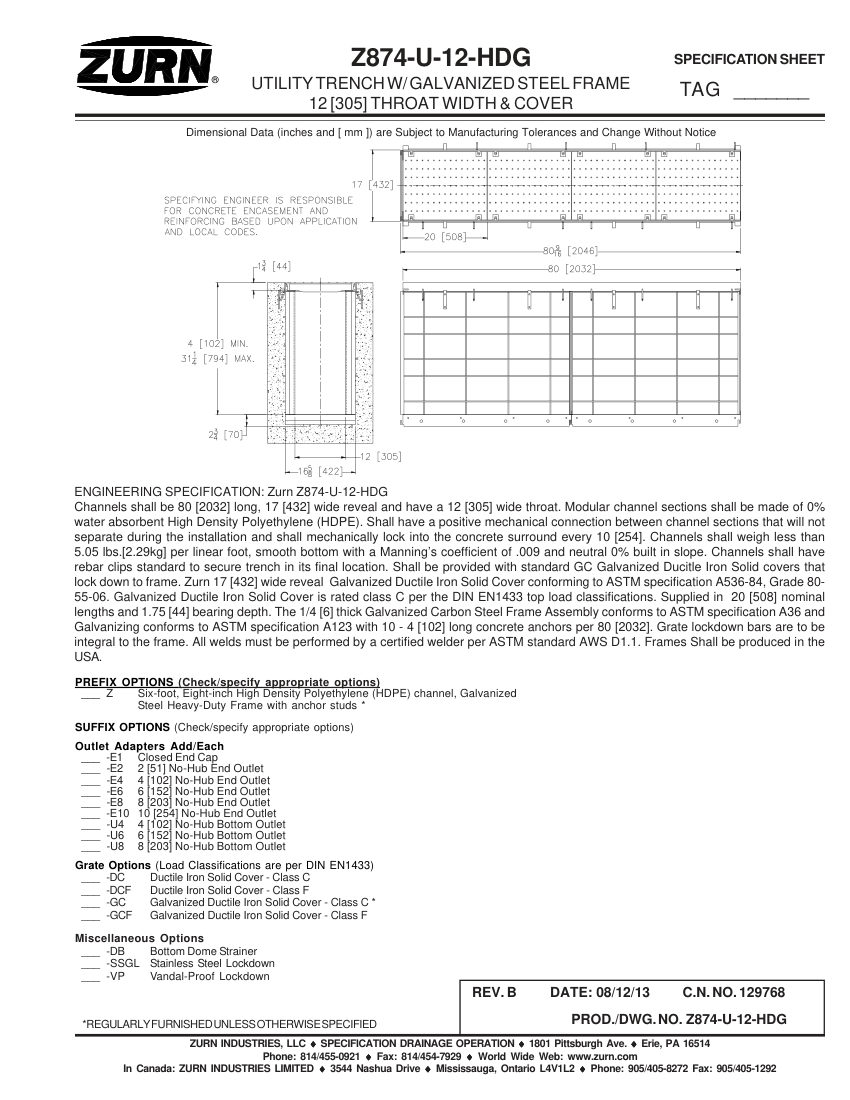

Zurn Z874-U-12-HDG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z874-U-12-HDG
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ874-U-12-HDG
DescriptionZurn Utility Trench with Galvanized Steel Frame (Utility Trench). Model Z874-U-12-HDG. Channel material is 0% water absorbent High Density Polyethylene (HDPE); Cover is Galvanized Ductile Iron Solid Cover rated Class C per DIN EN1433; Frame is 1/4 [6] thick Galvanized Carbon Steel conforming to ASTM A36; Channel weight is less than 5.05 lbs [2.29kg] per linear foot. material: HDPE channel, Galvanized Ductile Iron cover, Galvanized Carbon Steel frame
Connection size12 [305] throat width
End connectionNo-Hub Bottom Outlet (U)
FinishGalvanized
MountingMechanical lock into concrete, reba
