DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ874-U-18-HDG — Zurn Z874Z874-U-18-HDG

Zurn Utility Trench with Galvanized Steel Frame (Utility Trench). Model Z874-U-18-HDG. Channel made of 0% water absorbent HDPE; Manning's coefficient of .009; Weight less than 5.05 lbs [2.29kg] per linear foot; Cover rated Class C per DIN EN1433. material: HDPE channel, Galvanized Carbon Steel frame, Galvanized Ductile Iron cover

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ874-U-18-HDG.pdfData sheet

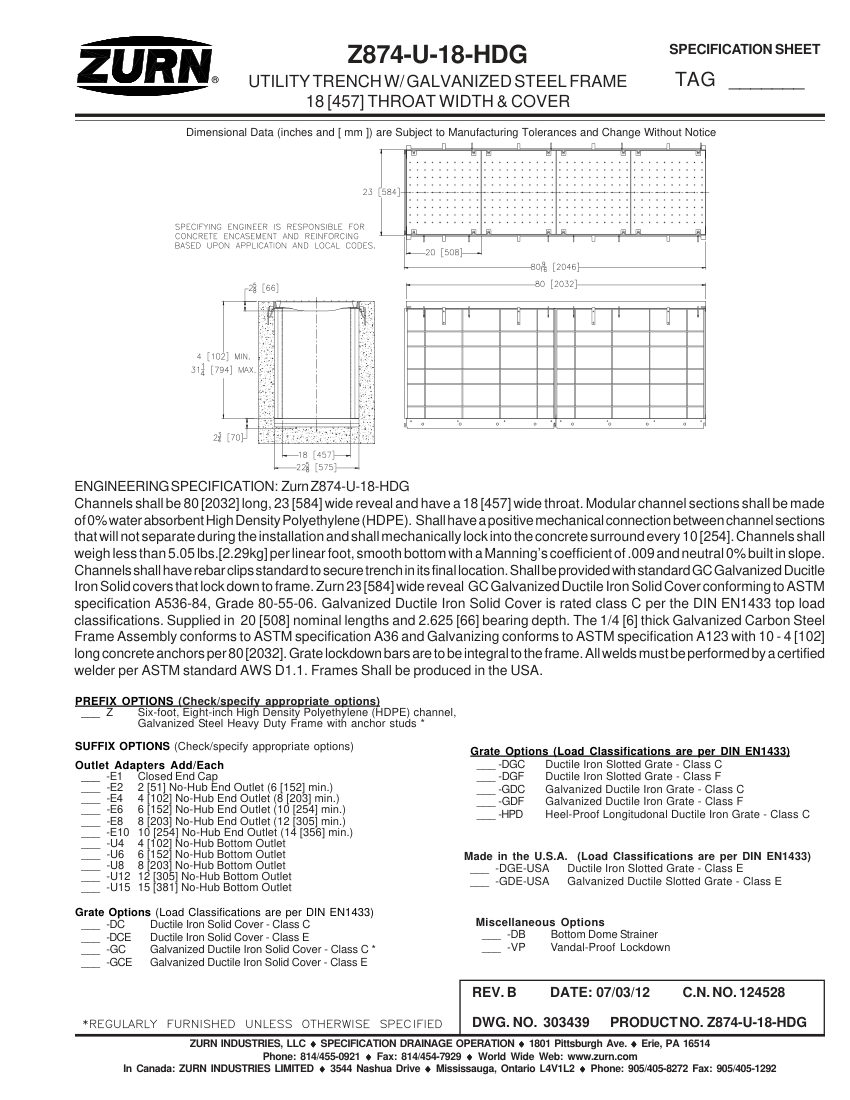

Zurn Z874-U-18-HDG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z874-U-18-HDG
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ874-U-18-HDG
DescriptionZurn Utility Trench with Galvanized Steel Frame (Utility Trench). Model Z874-U-18-HDG. Channel made of 0% water absorbent HDPE; Manning's coefficient of .009; Weight less than 5.05 lbs [2.29kg] per linear foot; Cover rated Class C per DIN EN1433. material: HDPE channel, Galvanized Carbon Steel frame, Galvanized Ductile Iron cover
Connection size18 [457] throat width
End connectionPositive mechanical connection
FinishGalvanized
MountingMechanically locks into concrete surround every 10 [254]
Dimensions80 [2032] long, 23 [584] wide reveal, 18 [457] wide throat.
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
