ZurnZ874-U-21-HD — Zurn Z874Z874-U-21-HD

Zurn Utility Trench with Steel Frame (Utility Trench). Model Z874-U-21-HD. 0% water absorbent HDPE channel; Manning's coefficient of .009; Ductile Iron cover rated Class C per DIN EN1433; Heavy-Duty Carbon Steel Frame conforms to ASTM A36. material: HDPE channel, Ductile Iron cover, Carbon Steel frame

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ874-U-21-HD.pdfData sheet

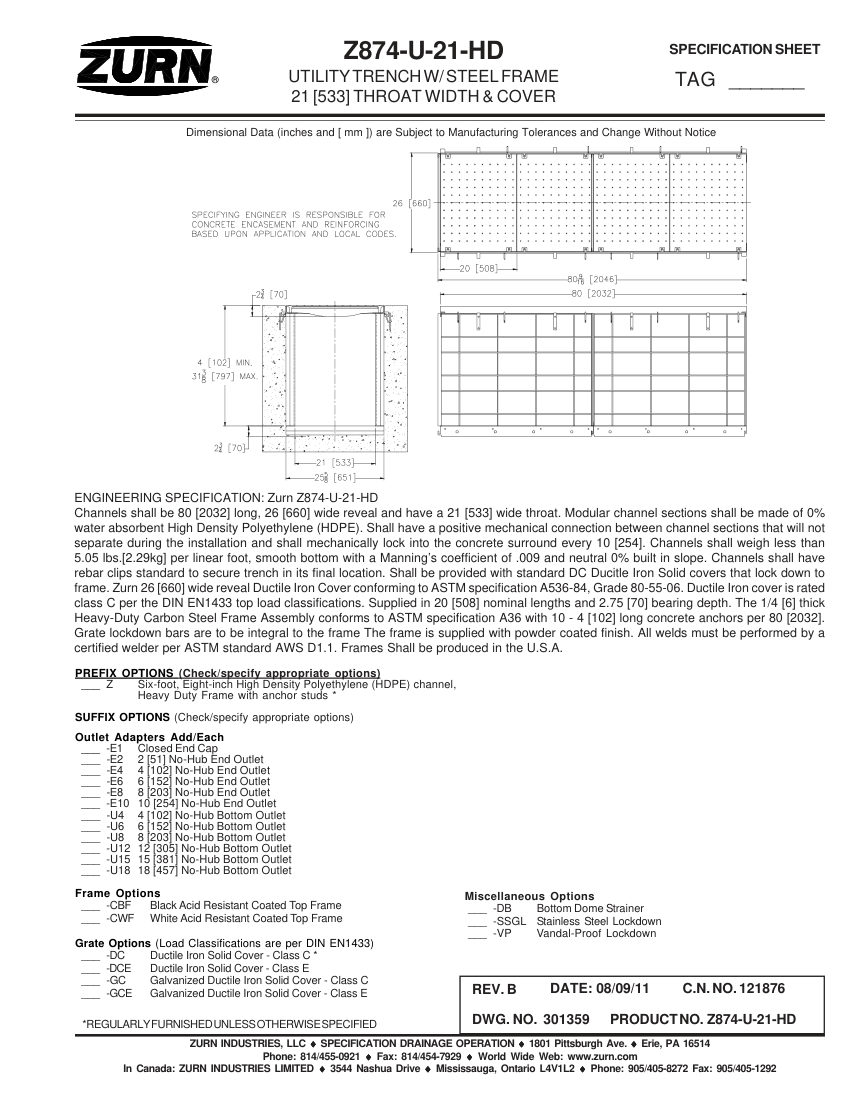

Zurn Z874-U-21-HD cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z874-U-21-HD
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ874-U-21-HD
DescriptionZurn Utility Trench with Steel Frame (Utility Trench). Model Z874-U-21-HD. 0% water absorbent HDPE channel; Manning's coefficient of .009; Ductile Iron cover rated Class C per DIN EN1433; Heavy-Duty Carbon Steel Frame conforms to ASTM A36. material: HDPE channel, Ductile Iron cover, Carbon Steel frame
Connection size21 [533] throat width
End connectionPositive mechanical connection
FinishPowder coated frame, Ductile Iron cover
MountingMechanically locks into concrete, rebar clips
Dimensions80 [2032] long, 26 [660] wide reveal, 21 [533] throat width.
