DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ874-U-21-HDG — Z874Z874-U-21-HDG

Zurn HDPE Utility Trench with Galvanized Steel Frame (Utility Trench). Model Z874-U-21-HDG. 0% water absorbent HDPE channel; Manning's coefficient of .009; Weight less than 5.05 lbs [2.29kg] per linear foot; Galvanized Ductile Iron Solid Cover rated Class C. material: HDPE channel, Galvanized Carbon Steel frame, Galvanized Ductile Iron cover

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ874-U-21-HDG.pdfData sheet

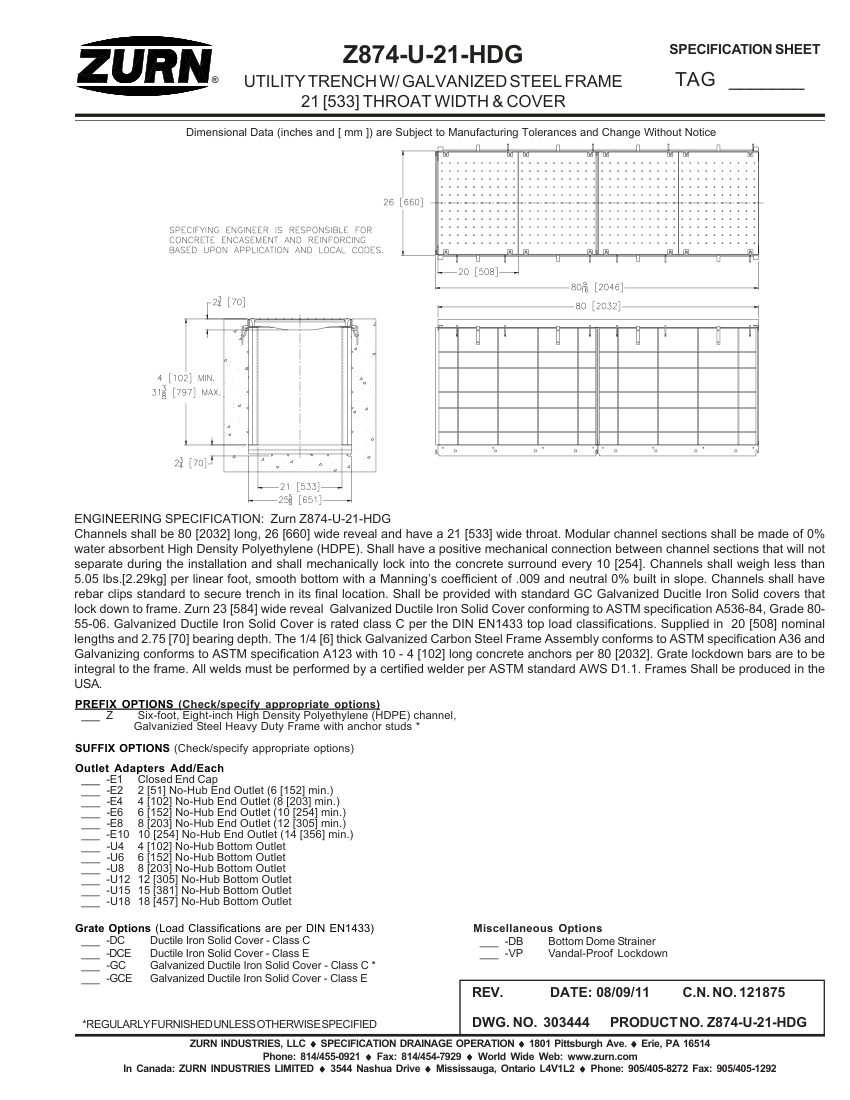

Zurn Z874-U-21-HDG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z874-U-21-HDG
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ874-U-21-HDG
DescriptionZurn HDPE Utility Trench with Galvanized Steel Frame (Utility Trench). Model Z874-U-21-HDG. 0% water absorbent HDPE channel; Manning's coefficient of .009; Weight less than 5.05 lbs [2.29kg] per linear foot; Galvanized Ductile Iron Solid Cover rated Class C. material: HDPE channel, Galvanized Carbon Steel frame, Galvanized Ductile Iron cover
Connection size21 [533] throat width
End connectionPositive mechanical connection
FinishGalvanized
MountingMechanically locks into concrete surround every 10 [254]
Dimensions80 [2032] long, 26 [660] wide reveal, 21 [533] wide throat.
