DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ874-U-4-HDS — Z874Z874-U-4-HDS

Zurn Utility Trench Channel (Utility Trench). Model Z874-U-4-HDS. 0% water absorbent HDPE channel; Manning's coefficient of 0.009; Class B load rating per DIN EN1433; 0.105 in [2.66] thick heavy-duty stainless steel frame. material: HDPE channel, Type 304 Stainless Steel frame and cover

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ874-U-4-HDS.pdfData sheet

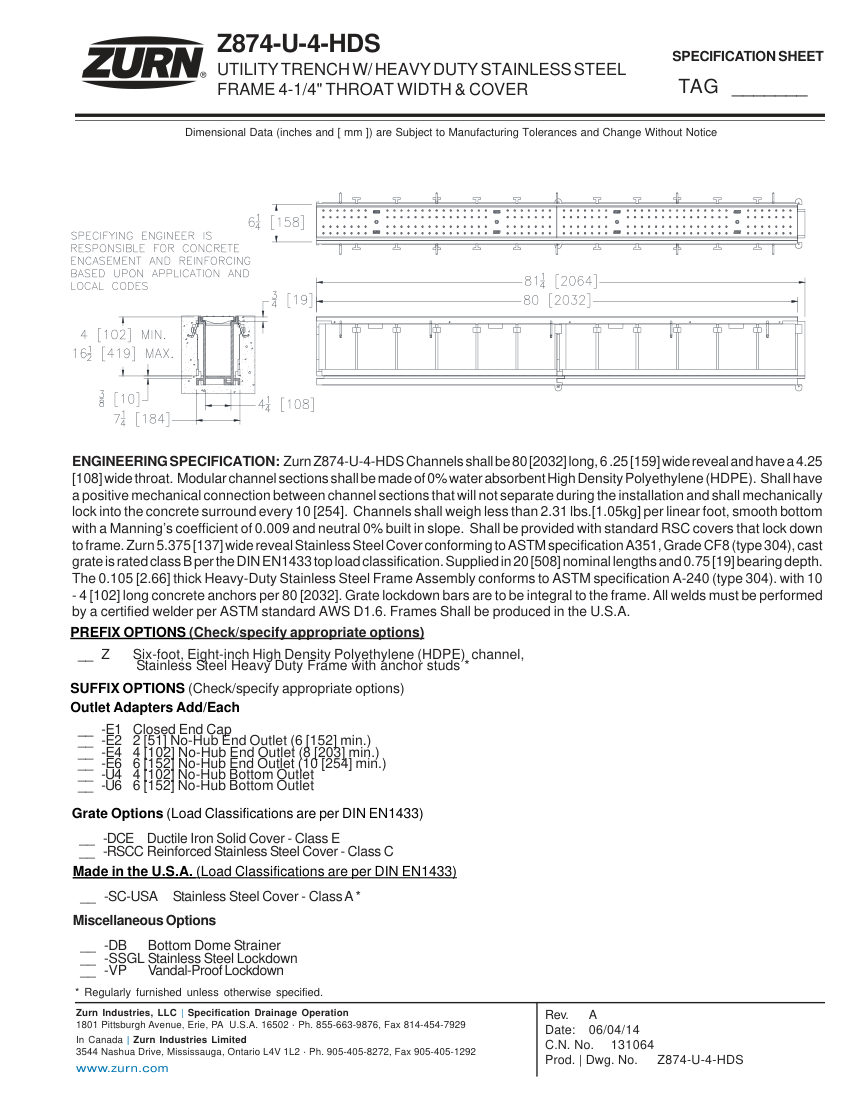

Zurn Z874-U-4-HDS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z874-U-4-HDS
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ874-U-4-HDS
DescriptionZurn Utility Trench Channel (Utility Trench). Model Z874-U-4-HDS. 0% water absorbent HDPE channel; Manning's coefficient of 0.009; Class B load rating per DIN EN1433; 0.105 in [2.66] thick heavy-duty stainless steel frame. material: HDPE channel, Type 304 Stainless Steel frame and cover
Connection size4 in [102] No-Hub Bottom Outlet
FinishStainless Steel
MountingMechanical lock into concrete every 10 in [254]
Dimensions80 in [2032] long, 6.25 in [159] wide reveal, 4.25 in [108] throat width
ComplianceASTM A351 Grade CF8, ASTM A-240, DIN EN1433 Class B, AWS D1.6.
