ZurnZ874-U-9-HD
Zurn Utility Trench Channel with Steel Frame (Utility Trench). Model Z874-U-9-HD. 96 [2438] inch length; 9 [229] inch throat width; Ductile Iron cover rated Class E per DIN EN1433; HDPE channel with 0% water absorbency. material: HDPE channel, Carbon Steel frame, Ductile Iron cover
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Zurn
- Catalog no.
- Z874-U-9-HD
- Product type
- Plumbing
- MasterFormat
- 22

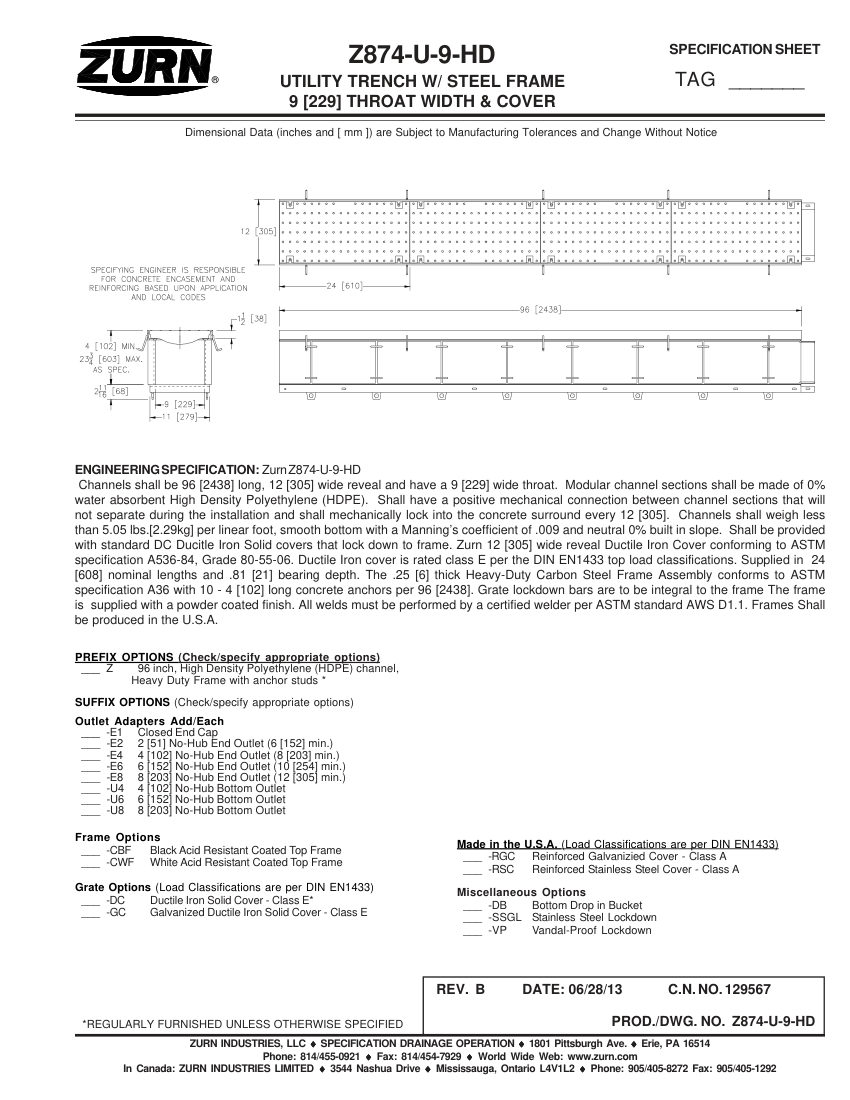

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | Z874-U-9-HD |
|---|---|
| Description | Zurn Utility Trench Channel with Steel Frame (Utility Trench). Model Z874-U-9-HD. 96 [2438] inch length; 9 [229] inch throat width; Ductile Iron cover rated Class E per DIN EN1433; HDPE channel with 0% water absorbency. material: HDPE channel, Carbon Steel frame, Ductile Iron cover |
| Connection size | 96 [2438] long |
| End connection | Mechanical connection, locks into concrete every 12 [305] |
| Finish | Powder coated frame, Ductile Iron cover |
| Mounting | 10 - 4 [102] long concrete anchors per 96 [2438] |
| Dimensions | 9 [229] throat width, 12 [305] wide reveal, 0.81 [21] bearing depth. |
