DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ874-U-9-HDG — Z874Z874-U-9-HDG

Zurn HDPE Utility Trench Channel with Galvanized Steel Frame (Utility Trench). Model Z874-U-9-HDG. 0% water absorbent HDPE channel; Manning's coefficient of 0.009; Weight less than 5.05 lbs [2.29kg] per linear foot; Galvanized Ductile Iron Solid Cover rated Class C per DIN EN1433. material: High Density Polyethylene (HDPE) channel, Galvanized Carbon Steel frame, Galvanized Ductile Iron cover

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ874-U-9-HDG.pdfData sheet

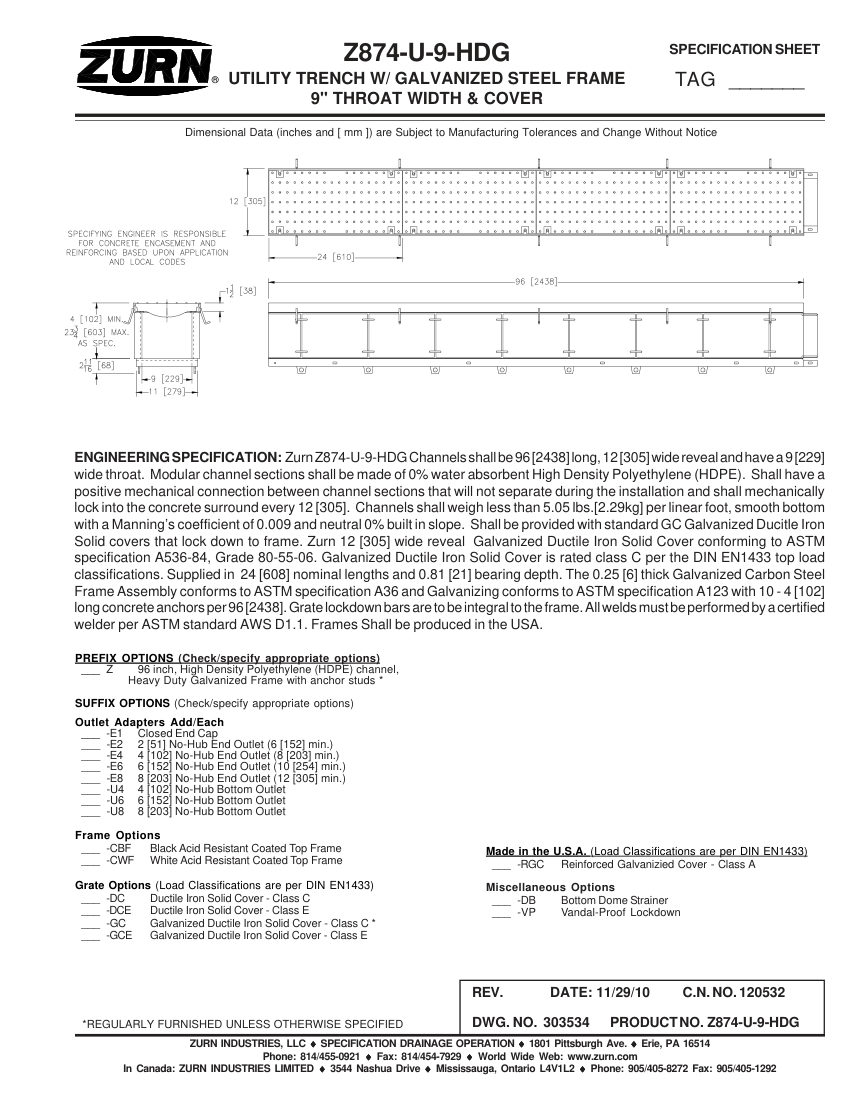

Zurn Z874-U-9-HDG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z874-U-9-HDG
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ874-U-9-HDG
DescriptionZurn HDPE Utility Trench Channel with Galvanized Steel Frame (Utility Trench). Model Z874-U-9-HDG. 0% water absorbent HDPE channel; Manning's coefficient of 0.009; Weight less than 5.05 lbs [2.29kg] per linear foot; Galvanized Ductile Iron Solid Cover rated Class C per DIN EN1433. material: High Density Polyethylene (HDPE) channel, Galvanized Carbon Steel frame, Galvanized Ductile Iron cover
Connection size96 inch length
End connectionPositive mechanical connection
FinishGalvanized
MountingMechanically locks into concrete surround every 12 inches
Dimensions96 [2438] long, 12 [305]
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
