DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ874-U-9-HDS — Z874Z874-U-9-HDS

Zurn Utility Trench Channel (Utility Trench). Model Z874-U-9-HDS. 0% water absorbent HDPE channel; Manning's coefficient of 0.009; Weight less than 5.05 lbs [2.29kg] per linear foot; Class A load rating per DIN EN1433. material: HDPE channel, Stainless Steel frame (ASTM A-240 type 304), Stainless Steel cover (ASTM A351 Grade CF8)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ874-U-9-HDS.pdfData sheet

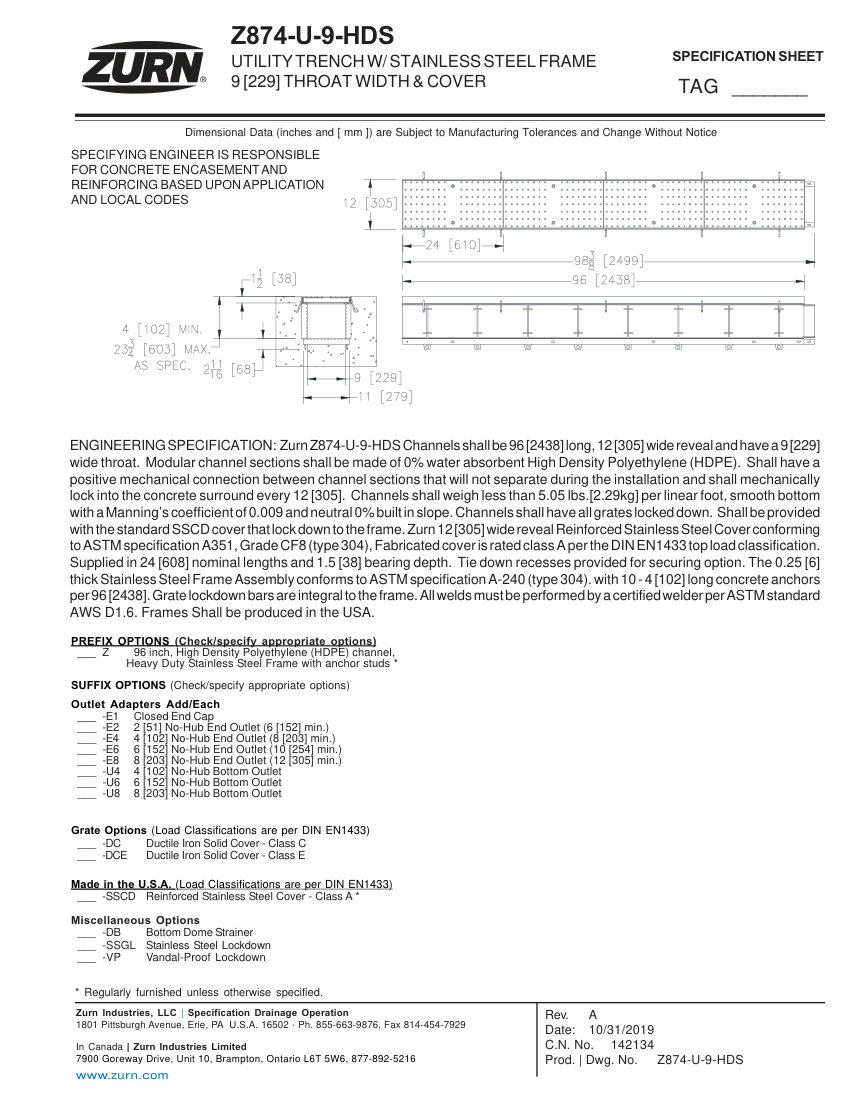

Zurn Z874-U-9-HDS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z874-U-9-HDS
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ874-U-9-HDS
DescriptionZurn Utility Trench Channel (Utility Trench). Model Z874-U-9-HDS. 0% water absorbent HDPE channel; Manning's coefficient of 0.009; Weight less than 5.05 lbs [2.29kg] per linear foot; Class A load rating per DIN EN1433. material: HDPE channel, Stainless Steel frame (ASTM A-240 type 304), Stainless Steel cover (ASTM A351 Grade CF8)
Connection size9 [229] throat width
End connectionPositive mechanical connection
FinishStainless Steel
MountingConcrete encasement with mechanical lock every 12 [305]
Dimensions96 [2438] long, 12 [305] wide reveal, 1.5 [38] bearing depth.
