ZurnZ874-U-LDRA — Z874Z874-U-LDRA

Zurn Light-Duty Utility Trench (Utility Trench). Model Z874-U-LDRA. 0% water absorbent HDPE channel; Weight less than 2.31 lbs [1.05kg] per linear foot; Smooth bottom with Manning's coefficient of customized slope; Aluminum Solid Cover rated Class A per DIN EN1433. material: HDPE channel, Aluminum cover and frame

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ874-U-LDRA.pdfData sheet

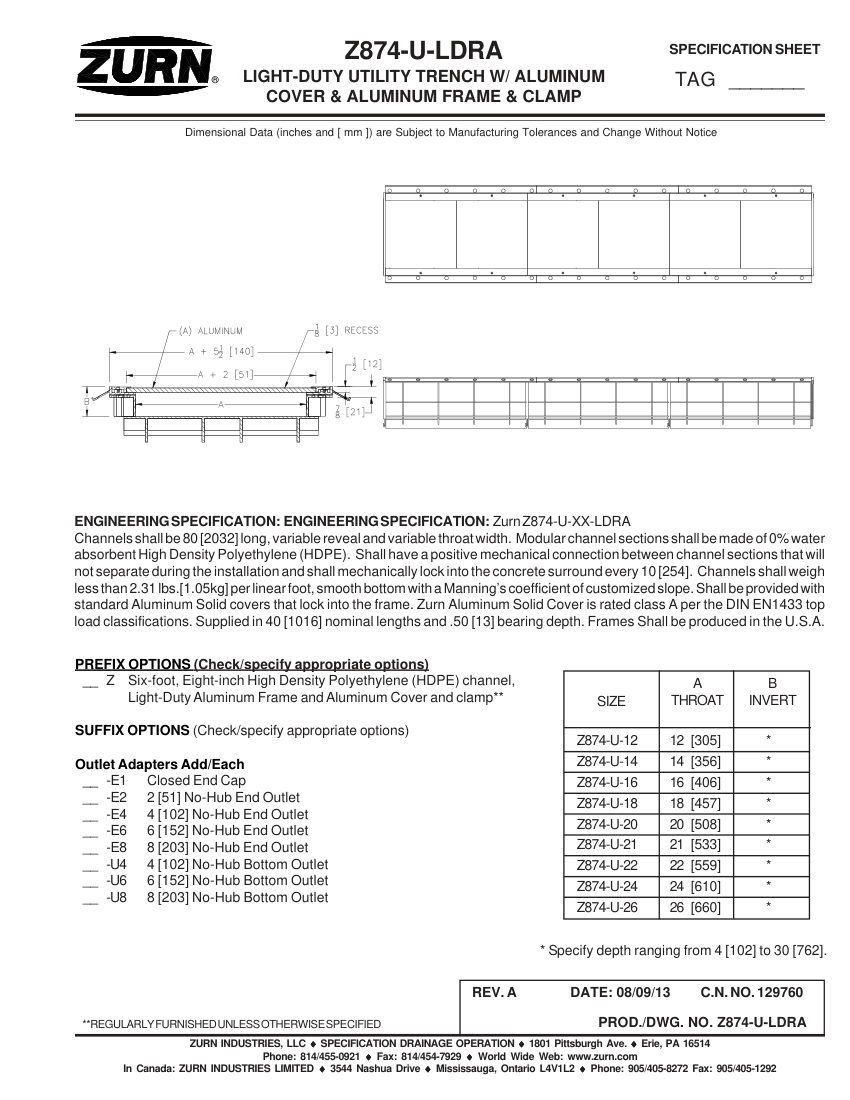

Zurn Z874-U-LDRA cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z874-U-LDRA
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ874-U-LDRA
DescriptionZurn Light-Duty Utility Trench (Utility Trench). Model Z874-U-LDRA. 0% water absorbent HDPE channel; Weight less than 2.31 lbs [1.05kg] per linear foot; Smooth bottom with Manning's coefficient of customized slope; Aluminum Solid Cover rated Class A per DIN EN1433. material: HDPE channel, Aluminum cover and frame
End connectionPositive mechanical connection
FinishAluminum Solid
MountingMechanically locks into concrete surround every 10 [254]
Dimensions80 [2032] long, 40 [1016] nominal lengths, .50 [13] bearing depth
ComplianceDIN EN1433 Class A.
