DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ882-DI

Zurn Trench Drain System (Trench Drain). Model Z882-DI. Channel is 0% water absorbent HDPE with 0.009 Manning's coefficient; Ductile iron grate conforms to ASTM A536-84 Grade 80-55-06; System is rated DIN Class F per EN1433; Grate has 13/16 in [21 mm] wide slots and 80.8 in²/ft open area. material: HDPE channel, Ductile Iron frame and grate

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ882-DI.pdfData sheet

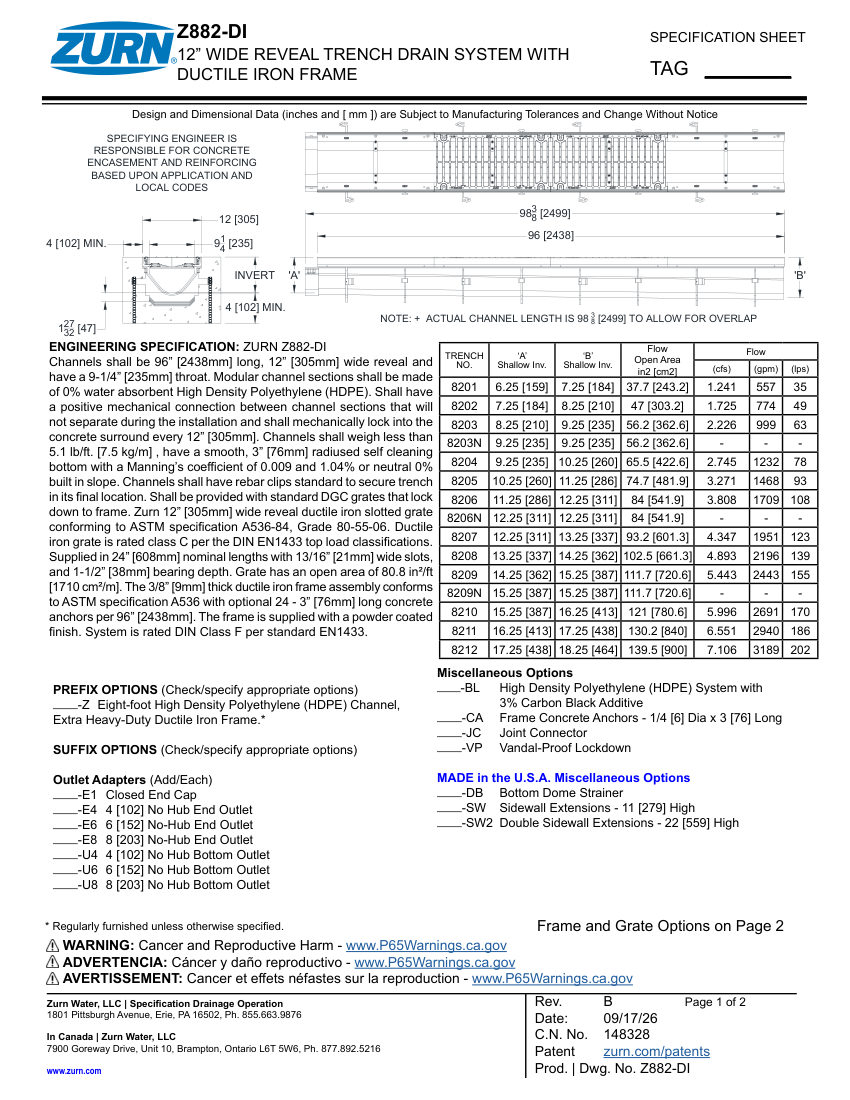

Zurn Z882-DI cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z882-DI
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ882-DI
DescriptionZurn Trench Drain System (Trench Drain). Model Z882-DI. Channel is 0% water absorbent HDPE with 0.009 Manning's coefficient; Ductile iron grate conforms to ASTM A536-84 Grade 80-55-06; System is rated DIN Class F per EN1433; Grate has 13/16 in [21 mm] wide slots and 80.8 in²/ft open area. material: HDPE channel, Ductile Iron frame and grate
Flow RateUp to 2940 gpm (186 lps) depending on invert
FinishPowder coated
MountingConcrete encasement
Dimensions96 in [2438 mm] long, 12 in [305 mm] wide reveal, 9-1/4 in [235 mm] throat
ComplianceASTM A536-84, DIN EN1433 Class F.
