DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ882-HDG — Zurn Z882Z882-HDG

Zurn Trench Drain System (Trench Drain). Model Z882-HDG. 12 in [305 mm] wide reveal with 9-1/4 in [235 mm] throat; HDPE channel with 0% water absorbency and 0.009 Manning's coefficient; Galvanized Ductile Iron Slotted Grate rated Class C per DIN EN1433; Frame conforms to ASTM A36 with ASTM A123 galvanizing. material: HDPE Channel, Galvanized Carbon Steel Frame, Galvanized Ductile Iron Grate

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ882-HDG.pdfData sheet

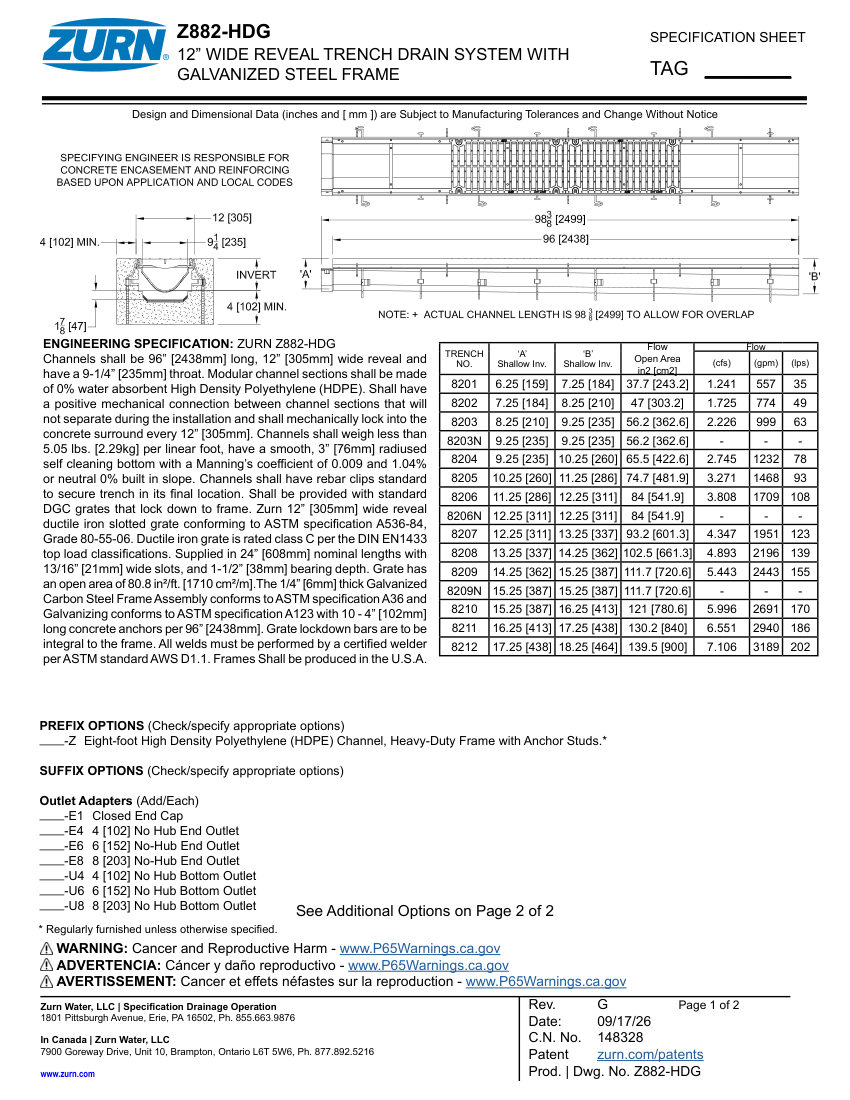

Zurn Z882-HDG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z882-HDG
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ882-HDG
DescriptionZurn Trench Drain System (Trench Drain). Model Z882-HDG. 12 in [305 mm] wide reveal with 9-1/4 in [235 mm] throat; HDPE channel with 0% water absorbency and 0.009 Manning's coefficient; Galvanized Ductile Iron Slotted Grate rated Class C per DIN EN1433; Frame conforms to ASTM A36 with ASTM A123 galvanizing. material: HDPE Channel, Galvanized Carbon Steel Frame, Galvanized Ductile Iron Grate
Connection size4, 6, 8 inch No-Hub End or Bottom Outlet
End connectionNo-Hub End or Bottom Outlet
Flow RateUp to 3189 gpm (202 lps) at 18.25 in head
FinishPowder Coated Frame, Galvanized Grate; mou
