DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ882-HDS — Z882Z882-HDS

Zurn Trench Drain System (Trench Drain). Model Z882-HDS. Channel made of 0% water absorbent High Density Polyethylene (HDPE); Stainless Steel Grate conforms to ASTM A351 Grade CF8 (Type 304); Grate rated Class B per DIN EN1433 top load classification; Channel has a Manning's coefficient of 0.009 and 0% built-in slope. material: HDPE Channel, Stainless Steel Frame (Type 304)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ882-HDS.pdfData sheet

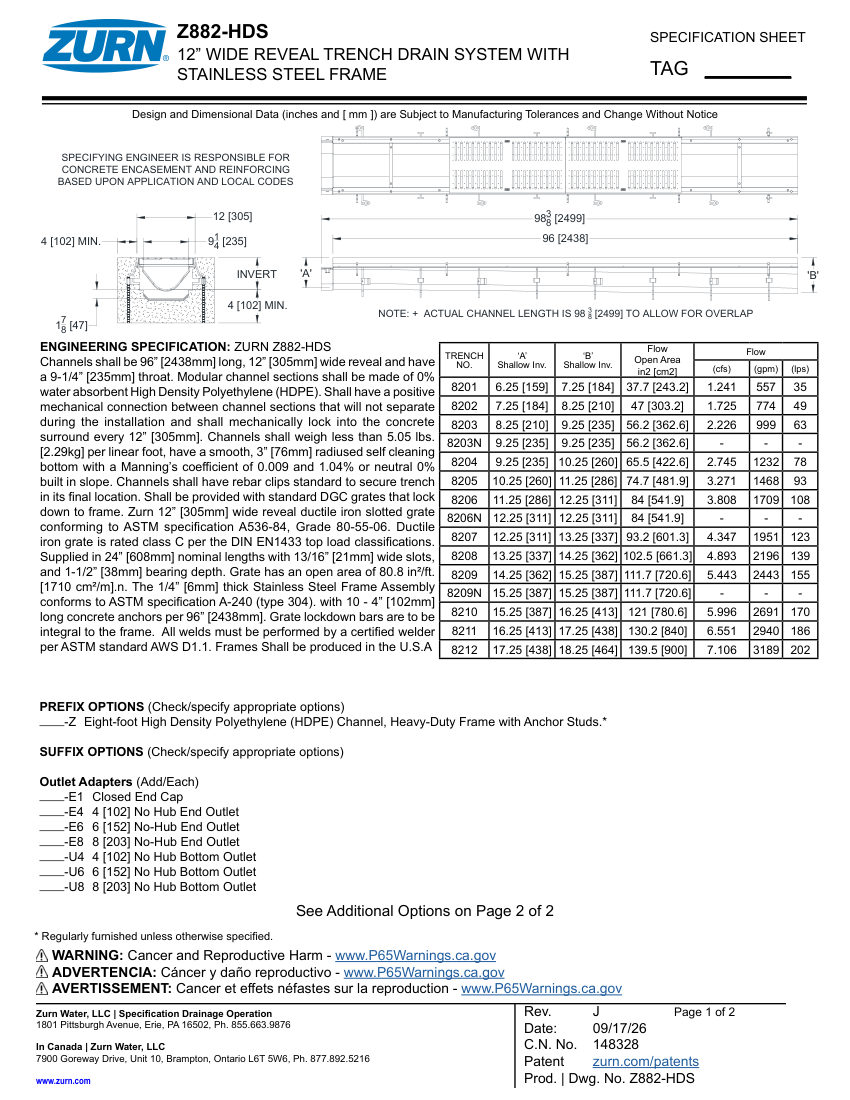

Zurn Z882-HDS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z882-HDS
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ882-HDS
DescriptionZurn Trench Drain System (Trench Drain). Model Z882-HDS. Channel made of 0% water absorbent High Density Polyethylene (HDPE); Stainless Steel Grate conforms to ASTM A351 Grade CF8 (Type 304); Grate rated Class B per DIN EN1433 top load classification; Channel has a Manning's coefficient of 0.009 and 0% built-in slope. material: HDPE Channel, Stainless Steel Frame (Type 304)
Connection size4, 6, or 8 inch No-Hub End or Bottom Outlet
End connectionNo-Hub
Flow RateUp to 3189 gpm (202 lps) depending on channel depth
FinishPowder Coated Frame
MountingConcrete Encasement with Rebar Clips
