DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ883

Zurn Shallow Trench Drain System (Trench Drain). Model Z883. Channel length 40" [1016mm] with 6" [152mm] wide reveal; 4" [102mm] throat with 2" [51mm] radiused self-cleaning bottom; Manning's coefficient of 0.009; Weight less than 2.31 lbs [1.05kg] per linear foot. material: Polyethylene channel, Ductile Iron grate

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ883.pdfData sheet

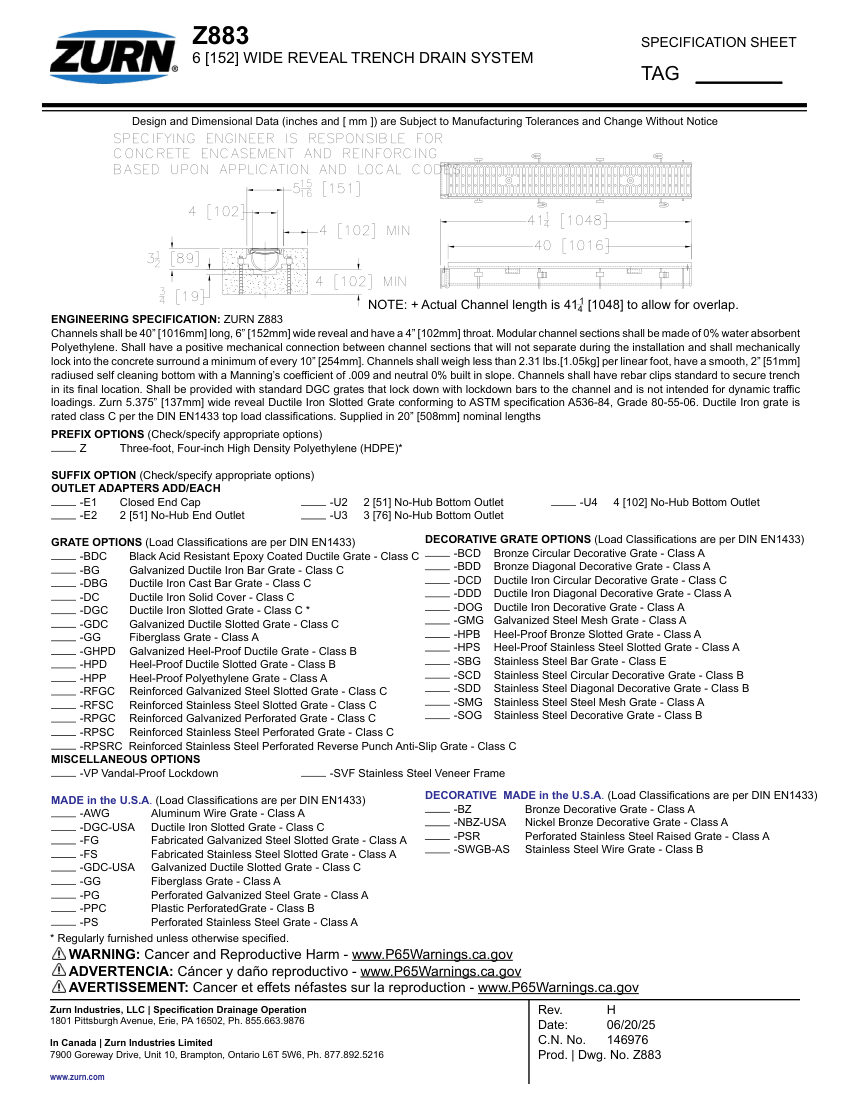

Zurn Z883 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z883
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ883
DescriptionZurn Shallow Trench Drain System (Trench Drain). Model Z883. Channel length 40" [1016mm] with 6" [152mm] wide reveal; 4" [102mm] throat with 2" [51mm] radiused self-cleaning bottom; Manning's coefficient of 0.009; Weight less than 2.31 lbs [1.05kg] per linear foot. material: Polyethylene channel, Ductile Iron grate
Connection size2" [51mm], 3" [76mm], 4" [102mm] No-Hub Bottom/End Outlets
End connectionPositive mechanical connection, Rebar clips
FinishDuctile Iron Slotted Grate (ASTM A536-84, Grade 80-55-06)
MountingConcrete encasement, Lockdown bars
Dimensions40" [1016mm] L x 6" [
