DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ884 — Zurn Z884 Shallow Linear Drain SystemZ884

Zurn Linear Drain System (Trench Drain). Model Z884. 0% water absorbent Polypropylene channels; Manning's coefficient of .009; 1.634 [41.5] radiused self-cleaning bottom; Standard HPP grates rated Class A per DIN EN1433. material: Polypropylene

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ884.pdfData sheet

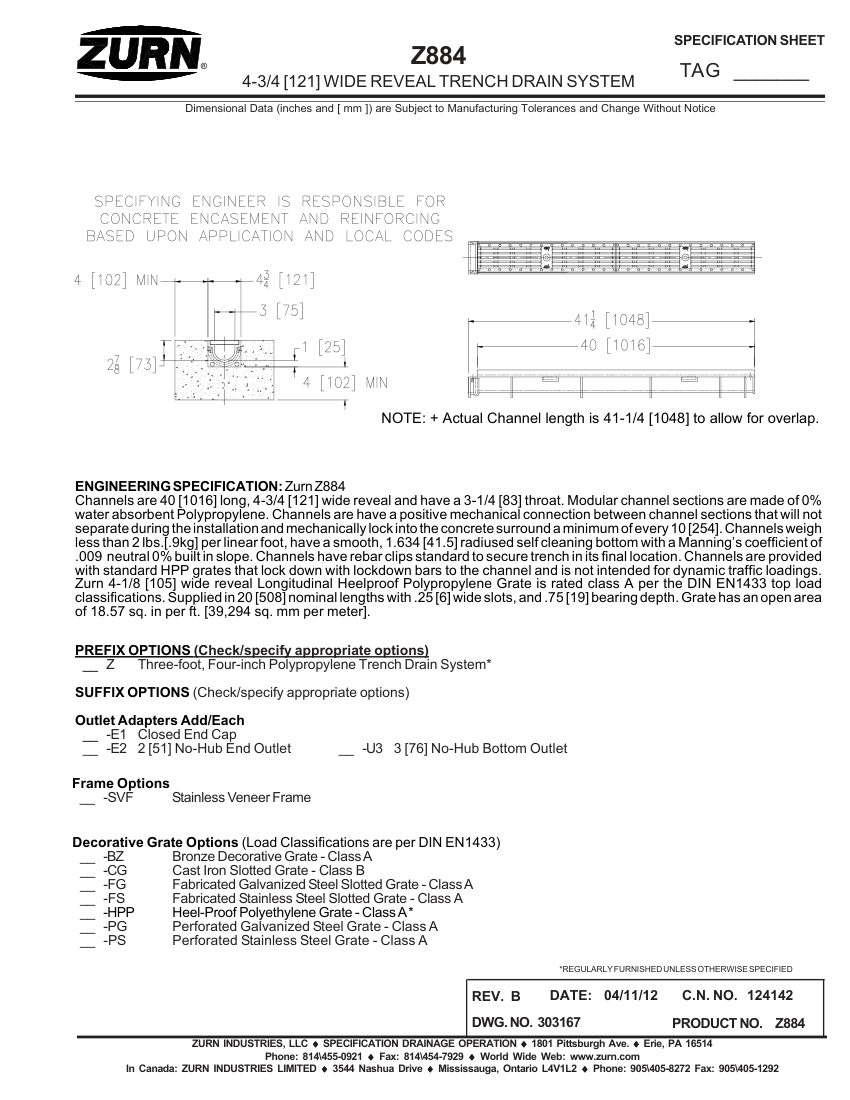

Zurn Z884 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z884
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ884
DescriptionZurn Linear Drain System (Trench Drain). Model Z884. 0% water absorbent Polypropylene channels; Manning's coefficient of .009; 1.634 [41.5] radiused self-cleaning bottom; Standard HPP grates rated Class A per DIN EN1433. material: Polypropylene
Connection size2 [51] No-Hub End Outlet, 3 [76] No-Hub Bottom Outlet
End connectionPositive mechanical connection
FinishStainless Veneer Frame, Bronze, Cast Iron, Galvanized Steel, Stainless Steel, Polyethylene
MountingMechanically locks into concrete surround
Dimensions40 [1016] long, 4-3/4 [121] wide reveal, 3-1/4 [83] throat.
