ZurnZ886-FGF — Z886Z886-FGF
Zurn Trench Drain System (Trench Drain). Model Z886-FGF. 0% water absorbent High Density Polyethylene (HDPE) channel; Ductile Iron slotted grate rated Class F per DIN EN1433; Manning's coefficient of 0.009; 21.0 in²/ft [446 cm²/m] open area. material: HDPE channel, Ductile Iron frame and grate
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Zurn
- Catalog no.
- Z886-FGF
- Product type
- Plumbing
- MasterFormat
- 22

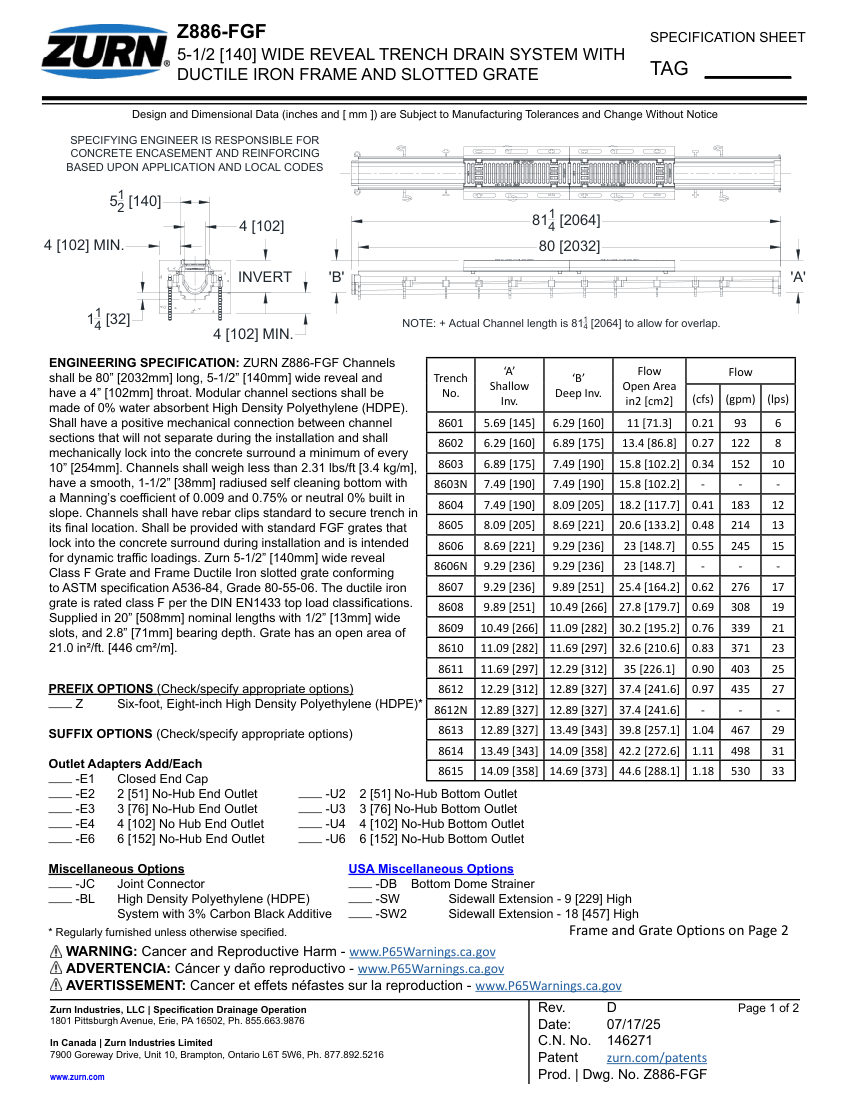

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | Z886-FGF |
|---|---|
| Description | Zurn Trench Drain System (Trench Drain). Model Z886-FGF. 0% water absorbent High Density Polyethylene (HDPE) channel; Ductile Iron slotted grate rated Class F per DIN EN1433; Manning's coefficient of 0.009; 21.0 in²/ft [446 cm²/m] open area. material: HDPE channel, Ductile Iron frame and grate |
| Connection size | 2, 3, 4, 6 inch No-Hub End or Bottom Outlets |
| End connection | Mechanical connection, Rebar clips |
| Flow Rate | Up to 1.18 cfs (530 gpm) depending on invert depth |
| Mounting | Concrete encasement |
| Dimensions | 5-1/2 in [140 mm] wide reveal, 4 in [102 mm] throat, 80 in [2032 mm] length. |
