DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ886-HD

Zurn Trench Drain System (Trench Drain). Model Z886-HD. Channel length is 80 in [2032 mm] with 6-3/4 in [171 mm] wide reveal; Made of 0% water absorbent High Density Polyethylene (HDPE); Heavy-Duty Carbon Steel Frame conforms to ASTM A36; Ductile Iron Slotted Grate rated Class C per DIN EN1433. material: HDPE channel, Carbon Steel frame, Ductile Iron grate

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ886-HD.pdfData sheet

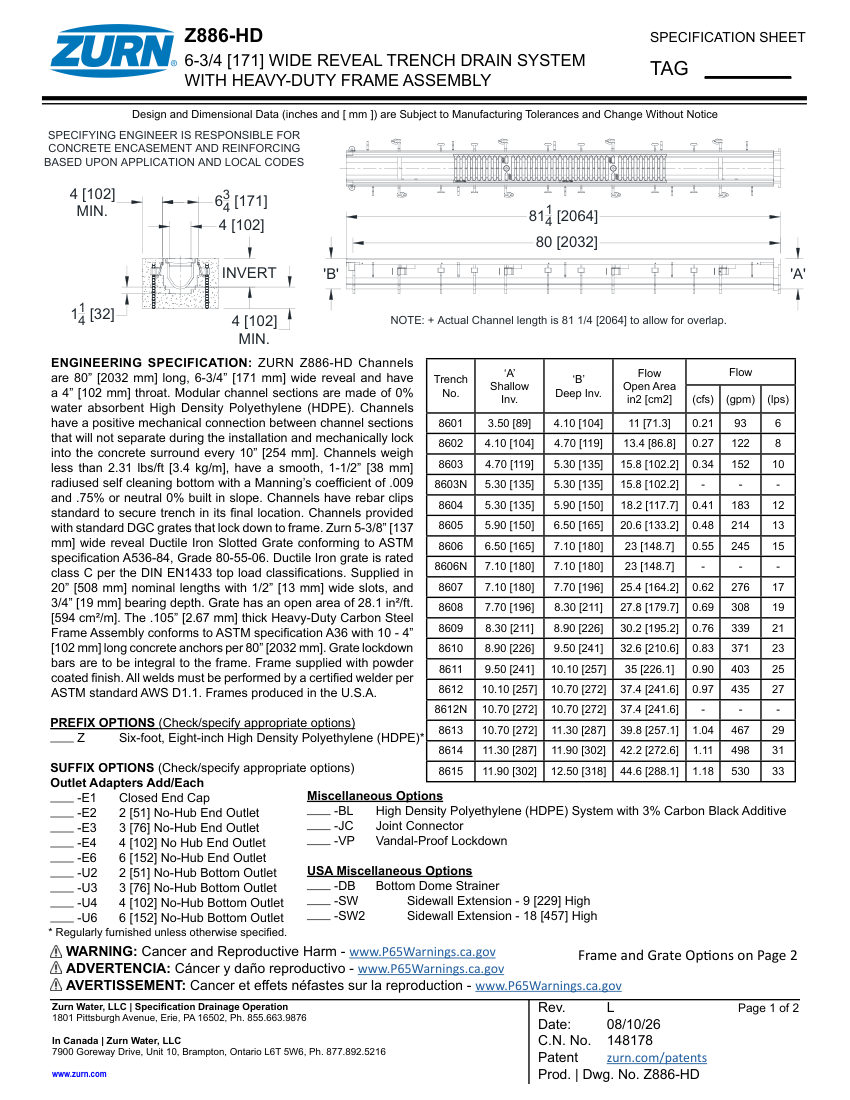

Zurn Z886-HD cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z886-HD
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ886-HD
DescriptionZurn Trench Drain System (Trench Drain). Model Z886-HD. Channel length is 80 in [2032 mm] with 6-3/4 in [171 mm] wide reveal; Made of 0% water absorbent High Density Polyethylene (HDPE); Heavy-Duty Carbon Steel Frame conforms to ASTM A36; Ductile Iron Slotted Grate rated Class C per DIN EN1433. material: HDPE channel, Carbon Steel frame, Ductile Iron grate
End connectionPositive mechanical connection
Flow RateUp to 530 gpm (33 lps)
FinishPowder coated frame
MountingConcrete encasement with rebar clips
Dimensions80 in [2032 mm] long, 6-3/4 in [171 mm] wide reveal, 4 in [102 mm] thr
