DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ886-HDD — Z886Z886-HDD

Zurn Trench Drain System (Trench Drain). Model Z886-HDD. Channel length is 80 inches [2032 mm] with 4-3/4 inch [121 mm] wide reveal; Grate is Class C per DIN EN1433 for dynamic traffic loadings; HDPE channel has 0% water absorbency and Manning's coefficient of 0.009; Grate open area is 39.22 in²/ft [830 cm²/m]. material: High Density Polyethylene (HDPE) channel, Ductile Iron grate

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ886-HDD.pdfData sheet

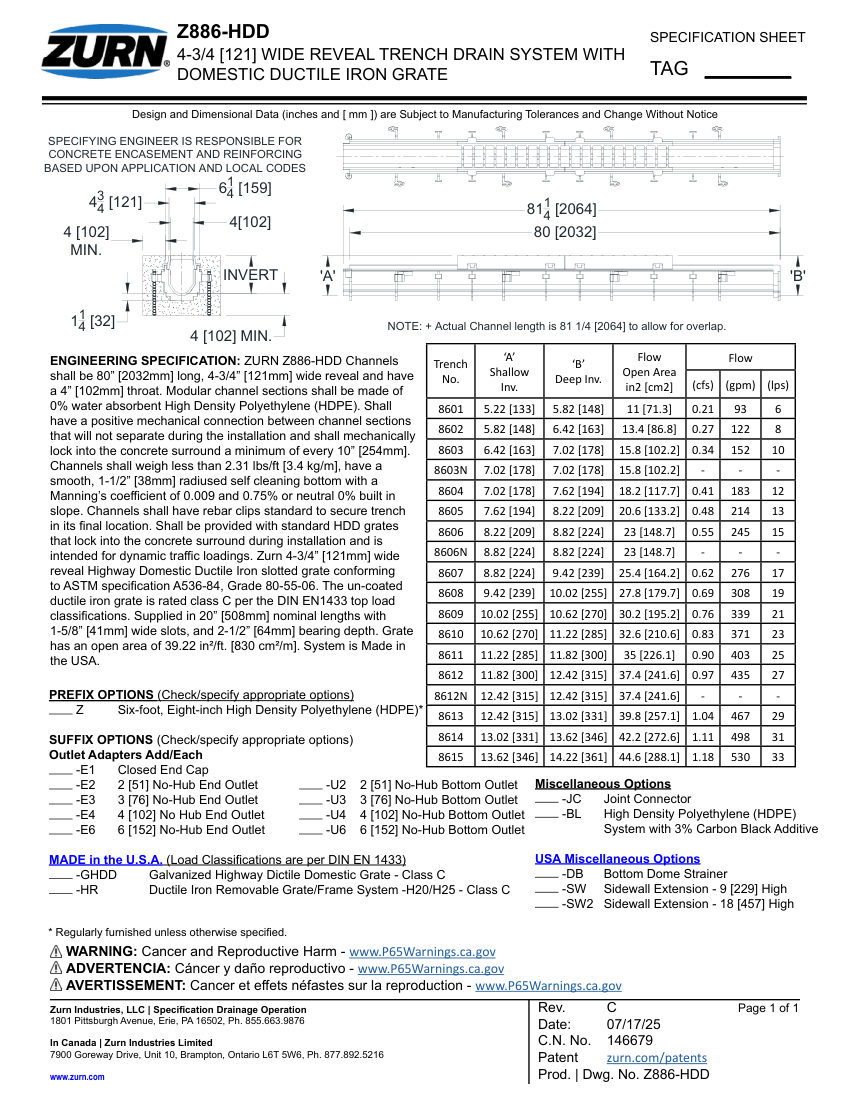

Zurn Z886-HDD cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z886-HDD
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ886-HDD
DescriptionZurn Trench Drain System (Trench Drain). Model Z886-HDD. Channel length is 80 inches [2032 mm] with 4-3/4 inch [121 mm] wide reveal; Grate is Class C per DIN EN1433 for dynamic traffic loadings; HDPE channel has 0% water absorbency and Manning's coefficient of 0.009; Grate open area is 39.22 in²/ft [830 cm²/m]. material: High Density Polyethylene (HDPE) channel, Ductile Iron grate
Connection size2, 3, 4, 6 inch No-Hub End or Bottom Outlets
End connectionPositive mechanical connection, rebar clips
Flow Rate0.21 to 1.18 cfs (93 to 530 gpm)
FinishUn-coated ductile iron grate
MountingC
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click

From fixture schedule to submittal in minutes.

How the Builder works →
  1. 01

    Describe the job

    Paste a fixture schedule, upload a spec section, or just list catalog numbers and quantities.

  2. 02

    The agent matches & assembles

    Products are matched from the indexed library and current cut sheets are pulled into a formatted package with cover and TOC.

  3. 03

    Share for review

    Send one link for sign-off, then roll the approved package into a quote or PO without retyping a part number.

More from Zurn

All 1808 cut sheets →
Browse every manufacturer in the cut sheet library →

Put the Z886-HDD in a submittal package.

Describe the job and the AI agent builds the whole package — cut sheets pulled, schedule matched, cover and TOC included.

Get started freeNo card required
