Zurn Trench Drain System (Trench Drain). Model Z886-HDG. Channel material is 0% water absorbent High Density Polyethylene (HDPE); Grate is 6 in [152 mm] wide reveal Galvanized Ductile Iron, Class C rated; Frame is 0.105 in [2.66 mm] thick Heavy-Duty Galvanized Carbon Steel; Manning's coefficient of 0.009 with 0.75% or neutral built-in slope. material: HDPE Channel, Galvanized Carbon Steel Frame, Ductile Iron Grate

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ886-HDG.pdfData sheet

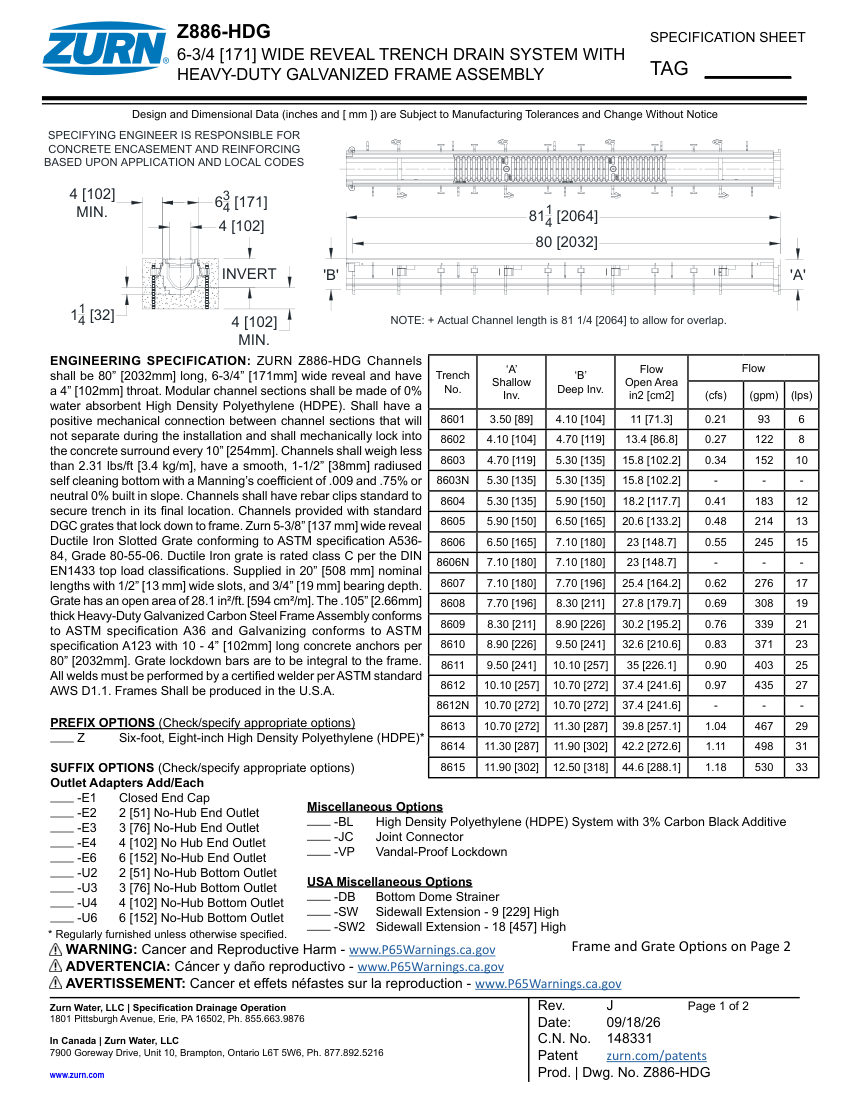

Zurn Z886-HDG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z886-HDG
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ886-HDG
DescriptionZurn Trench Drain System (Trench Drain). Model Z886-HDG. Channel material is 0% water absorbent High Density Polyethylene (HDPE); Grate is 6 in [152 mm] wide reveal Galvanized Ductile Iron, Class C rated; Frame is 0.105 in [2.66 mm] thick Heavy-Duty Galvanized Carbon Steel; Manning's coefficient of 0.009 with 0.75% or neutral built-in slope. material: HDPE Channel, Galvanized Carbon Steel Frame, Ductile Iron Grate
End connectionNo-Hub End Outlet (2, 3, 4, 6 inch options)
Flow RateUp to 530 gpm (11.90 in Shallow Inv.)
FinishGalvanized
MountingConcrete Encasement
Dimensions80 in [20
