DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ886-HDS — Zurn Z886Z886-HDS

Zurn Trench Drain System (Trench Drain). Model Z886-HDS. Channel material is 0% water absorbent High Density Polyethylene (HDPE); Stainless steel frame assembly is 0.105 in [2.66 mm] thick; Grate is rated Class C per DIN EN1433 top load classifications; Manning's coefficient of 0.009 with 0.75% or neutral built-in slope. material: HDPE channel, Stainless Steel (304) frame and grate

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ886-HDS.pdfData sheet

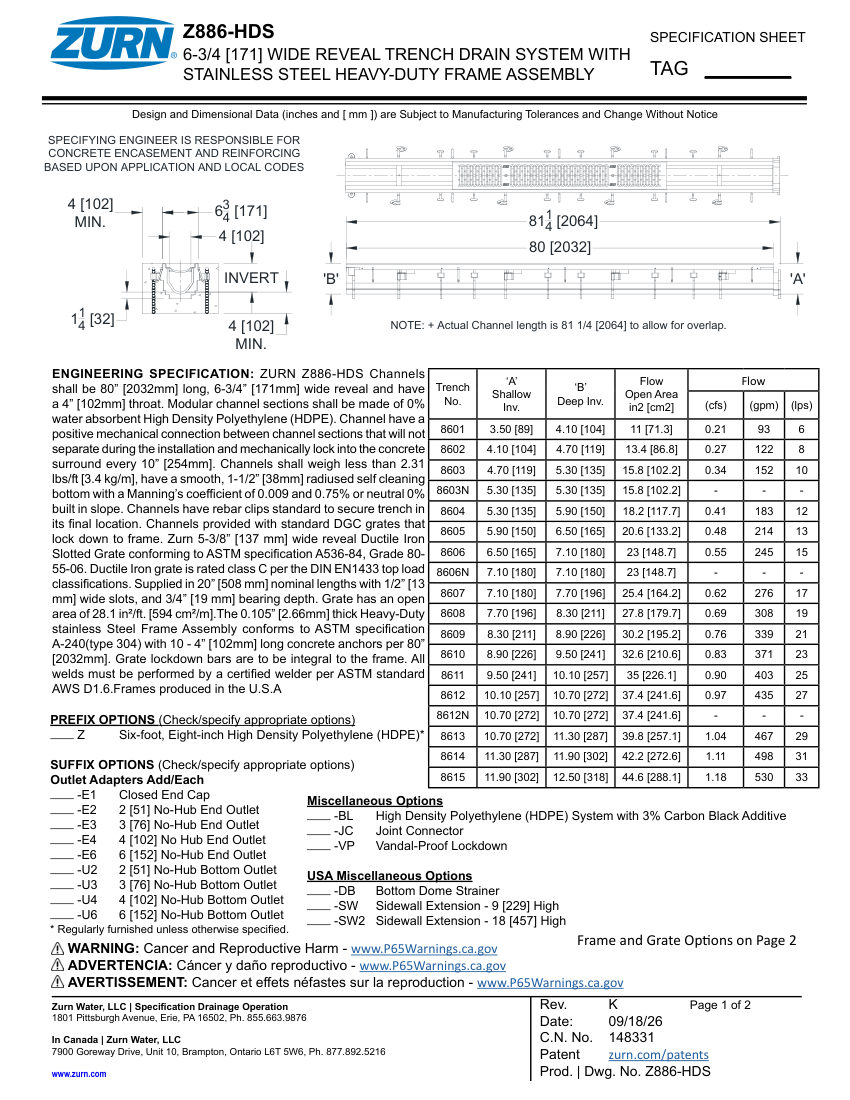

Zurn Z886-HDS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z886-HDS
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ886-HDS
DescriptionZurn Trench Drain System (Trench Drain). Model Z886-HDS. Channel material is 0% water absorbent High Density Polyethylene (HDPE); Stainless steel frame assembly is 0.105 in [2.66 mm] thick; Grate is rated Class C per DIN EN1433 top load classifications; Manning's coefficient of 0.009 with 0.75% or neutral built-in slope. material: HDPE channel, Stainless Steel (304) frame and grate
End connectionNo-Hub End Outlet (2, 3, 4, 6 inch options)
Flow RateUp to 530 gpm (11.90 in invert)
FinishStainless Steel
MountingConcrete encasement with 10 concrete anchors per 80 inch section; dimensions
