DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ8860-12-SS-TO-Z8863-20-SS

Zurn Braided Stainless Steel Lavatory/Sink Supply (Plumbing Supplies). Model Z8860-12-SS to Z8863-20-SS. Max temperature 180°F; Max pressure 125 psi; Type 304 stainless steel braid; Complies with NSF 61 and ASME A112.18.6. material: EPDM tubing jacketed by type 304 stainless steel braid, stainless steel ferrule and nickel plated brass nuts

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ8860-12-SS-TO-Z8863-20-SS.pdfData sheet

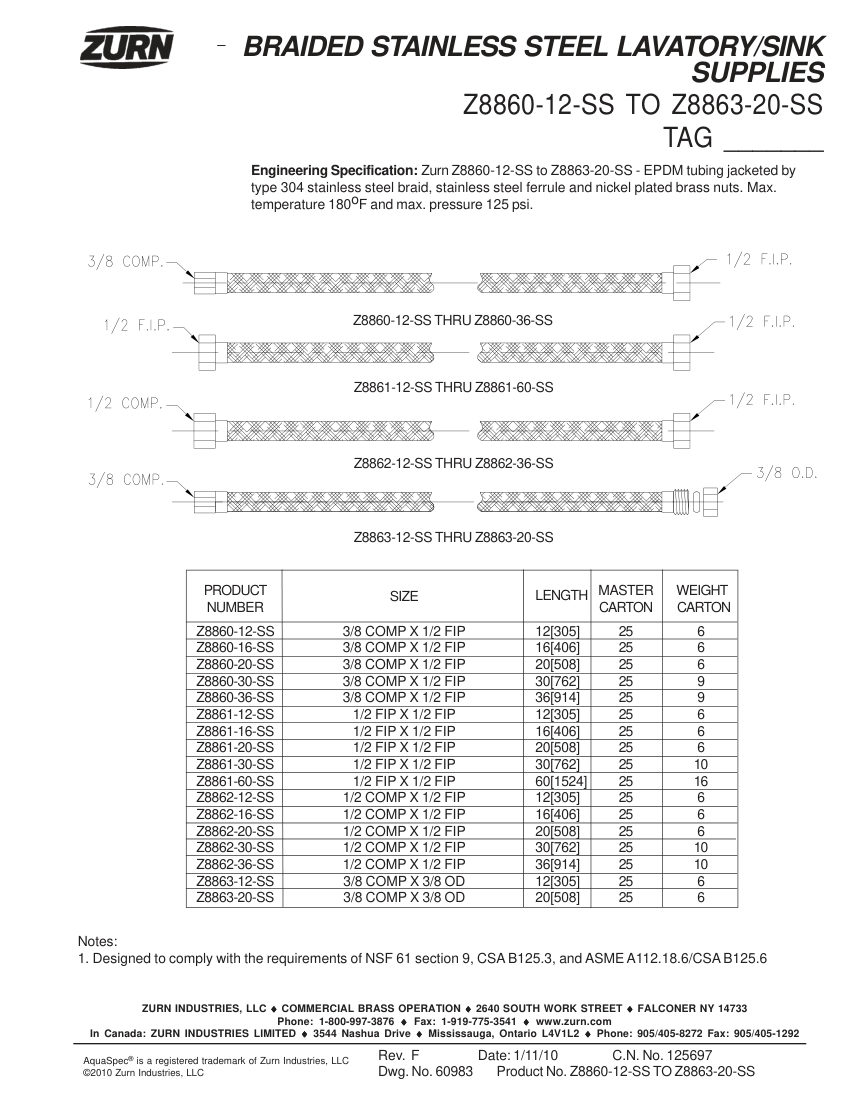

Zurn Z8860-12-SS-TO-Z8863-20-SS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z8860-12-SS-TO-Z8863-20-SS
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ8860-12-SS-TO-Z8863-20-SS
DescriptionZurn Braided Stainless Steel Lavatory/Sink Supply (Plumbing Supplies). Model Z8860-12-SS to Z8863-20-SS. Max temperature 180°F; Max pressure 125 psi; Type 304 stainless steel braid; Complies with NSF 61 and ASME A112.18.6. material: EPDM tubing jacketed by type 304 stainless steel braid, stainless steel ferrule and nickel plated brass nuts
Connection size3/8 COMP X 1/2 FIP, 1/2 FIP X 1/2 FIP, 1/2 COMP X 1/2 FIP, 3/8 COMP X 3/8 OD
End connectionCompression, FIP, OD
Pressure Rating125 psi
FinishStainless Steel, Nickel Plated Brass
DimensionsLengths 12 to 60 inches.
