ZurnZ887-12-HD
Zurn Catch Basin (Drainage). Model Z887-12-HD. Basin is 0% water absorbent HDPE; Basin weighs less than 14.6 lbs [6.6 kg]; Standard DGC Ductile Iron Slotted Grate rated Class C per DIN EN1433; Grate has 13/16 in [21 mm] wide slots and 80.80 in²/ft [171 cm²/m] open area. material: High Density Polyethylene (HDPE) basin, Ductile Iron grate, Carbon Steel frame
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Zurn
- Catalog no.
- Z887-12-HD
- Product type
- Plumbing
- MasterFormat
- 22

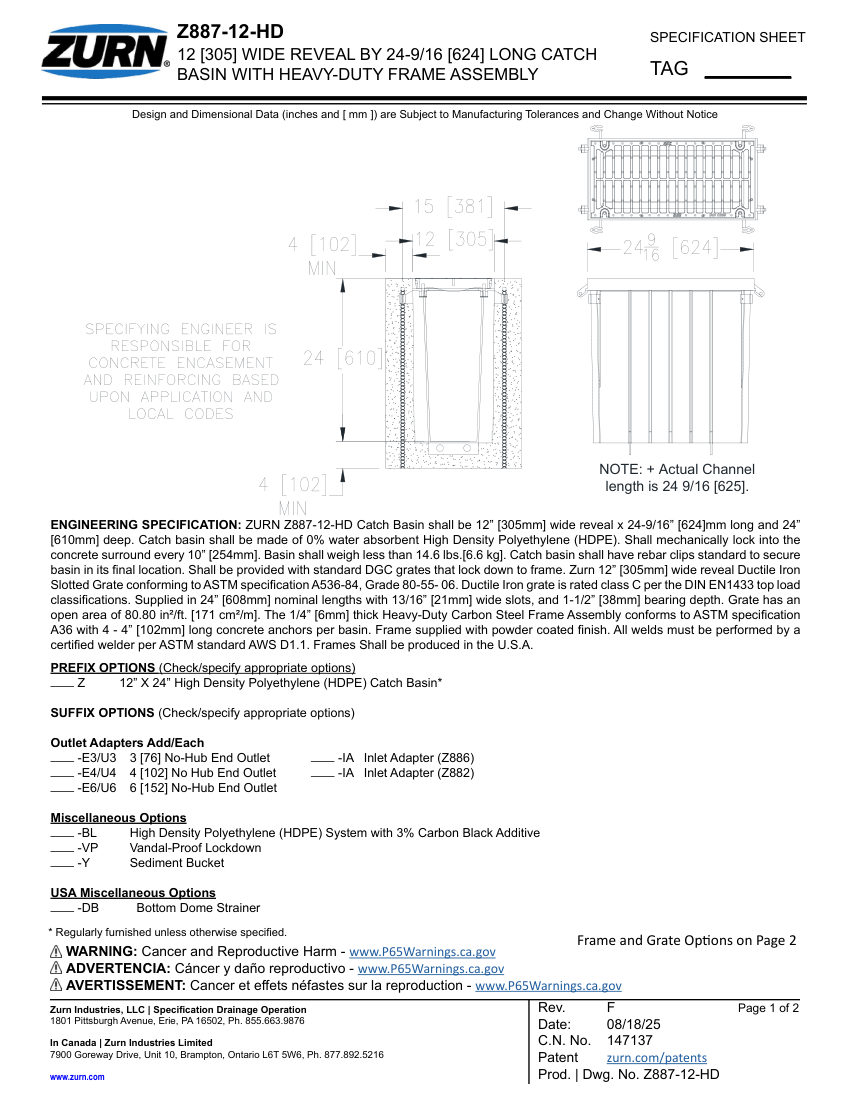

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | Z887-12-HD |
|---|---|
| Description | Zurn Catch Basin (Drainage). Model Z887-12-HD. Basin is 0% water absorbent HDPE; Basin weighs less than 14.6 lbs [6.6 kg]; Standard DGC Ductile Iron Slotted Grate rated Class C per DIN EN1433; Grate has 13/16 in [21 mm] wide slots and 80.80 in²/ft [171 cm²/m] open area. material: High Density Polyethylene (HDPE) basin, Ductile Iron grate, Carbon Steel frame |
| Connection size | 3, 4, or 6 inch No-Hub End Outlet (options) |
| End connection | No-Hub |
| Finish | Powder coated frame, Ductile Iron grate |
| Mounting | Mechanically locks into concrete surround every 10 inches, 4 concrete anchors |
| Dimensions | 12 in |
