ZurnZ887-12-HDS — Z887Z887-12-HDS
Zurn Catch Basin (Drainage). Model Z887-12-HDS. Basin is 0% water absorbent HDPE; Basin weighs less than 14.6 lbs [6.6 kg]; Standard grate is 12 in wide reveal Stainless Steel Reinforced Slotted Grate; Grate has 3/8 in [10 mm] wide slots and 25.6 in²/ft open area. material: High Density Polyethylene (HDPE) basin, Stainless Steel (Type 304) frame and grate
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Zurn
- Catalog no.
- Z887-12-HDS
- Product type
- Plumbing
- MasterFormat
- 22

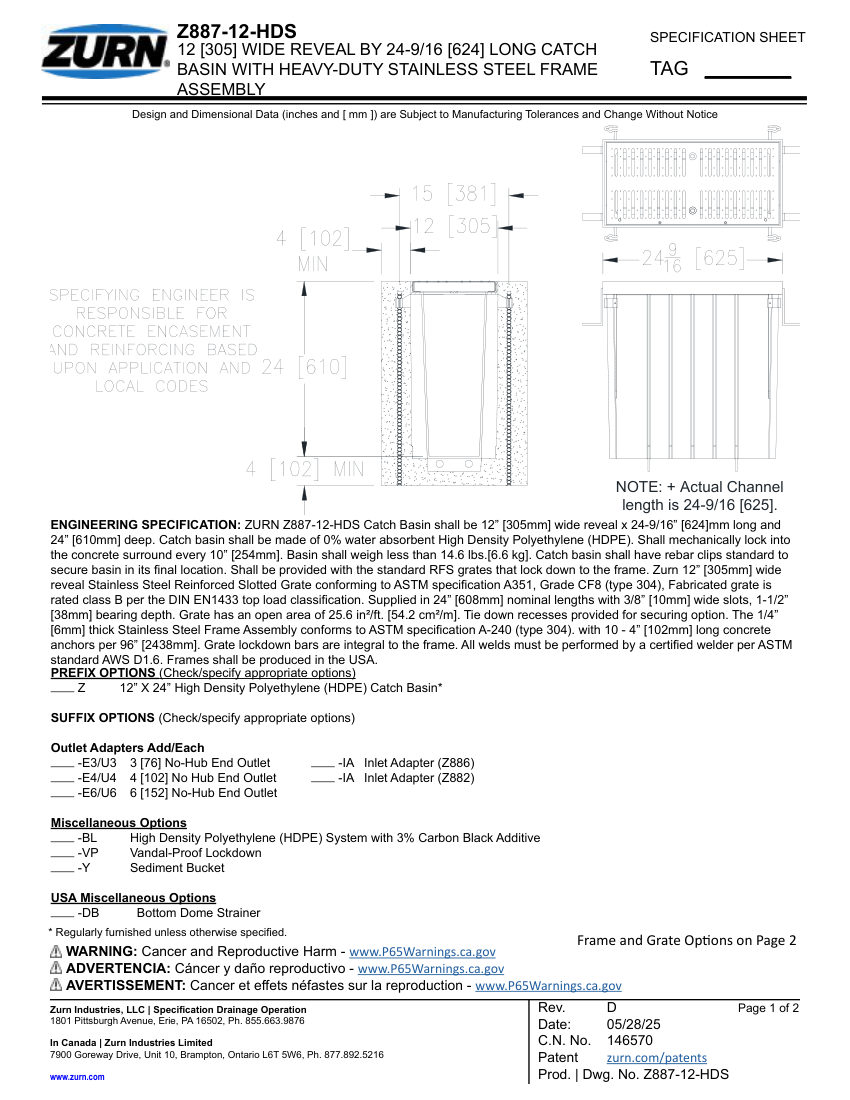

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | Z887-12-HDS |
|---|---|
| Description | Zurn Catch Basin (Drainage). Model Z887-12-HDS. Basin is 0% water absorbent HDPE; Basin weighs less than 14.6 lbs [6.6 kg]; Standard grate is 12 in wide reveal Stainless Steel Reinforced Slotted Grate; Grate has 3/8 in [10 mm] wide slots and 25.6 in²/ft open area. material: High Density Polyethylene (HDPE) basin, Stainless Steel (Type 304) frame and grate |
| Connection size | 3, 4, or 6 inch No-Hub End Outlet (options) |
| End connection | No-Hub |
| Finish | Stainless Steel |
| Mounting | Mechanically locks into concrete surround every 10 inches; rebar clips standard |
| Dimensions | 12 in [305 mm] wide reveal x |
