ZurnZ887-24-HD
Zurn Catch Basin (Drainage). Model Z887-24-HD. 0% water absorbent HDPE basin; Weight less than 20.0 lbs [9.1 kg]; Standard DGC Ductile Iron Slotted Grate rated Class C; Grate open area of 164 in²/ft [3471 cm²/m]. material: High Density Polyethylene (HDPE), Ductile Iron, ASTM A36 or A536-84
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Zurn
- Catalog no.
- Z887-24-HD
- Product type
- Plumbing
- MasterFormat
- 22

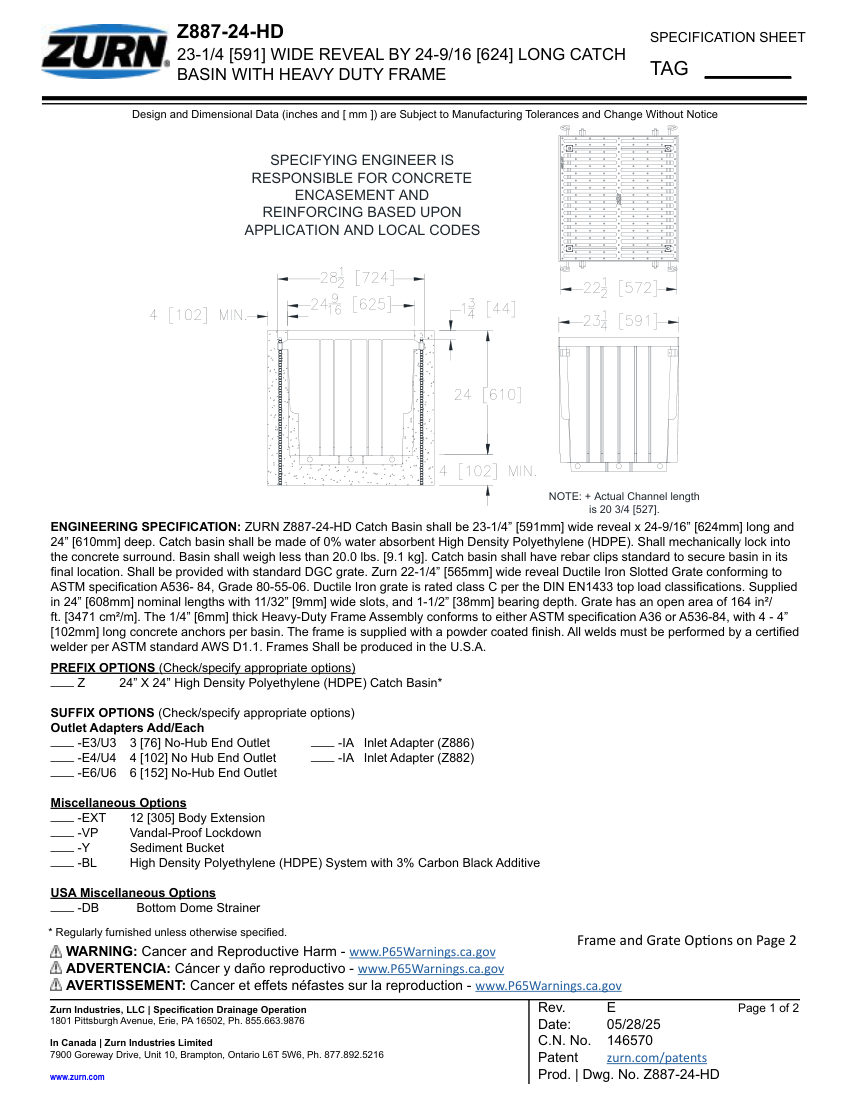

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | Z887-24-HD |
|---|---|
| Description | Zurn Catch Basin (Drainage). Model Z887-24-HD. 0% water absorbent HDPE basin; Weight less than 20.0 lbs [9.1 kg]; Standard DGC Ductile Iron Slotted Grate rated Class C; Grate open area of 164 in²/ft [3471 cm²/m]. material: High Density Polyethylene (HDPE), Ductile Iron, ASTM A36 or A536-84 |
| Connection size | 3, 4, or 6 inch No-Hub End Outlet |
| End connection | No-Hub |
| Finish | Powder coated frame, Black Acid Resistant Epoxy or Galvanized grate options |
| Mounting | Mechanically locks into concrete surround with rebar clips and 4 concrete anchors |
| Dimensions | 23-1/4" [591mm] wide reveal x 24-9/16" [624m |
