DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZ896

Zurn Trench Drain System (Trench Drain). Model Z896. 16 gauge fabricated stainless steel channel; Smooth 'V' bottom self-flushing profile with Manning's coefficient of .009; 1.04% built-in slope; Weight less than 5.58 lbs [2.53 kg] per linear foot. material: Type 304 (CF8) Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZ896.pdfData sheet

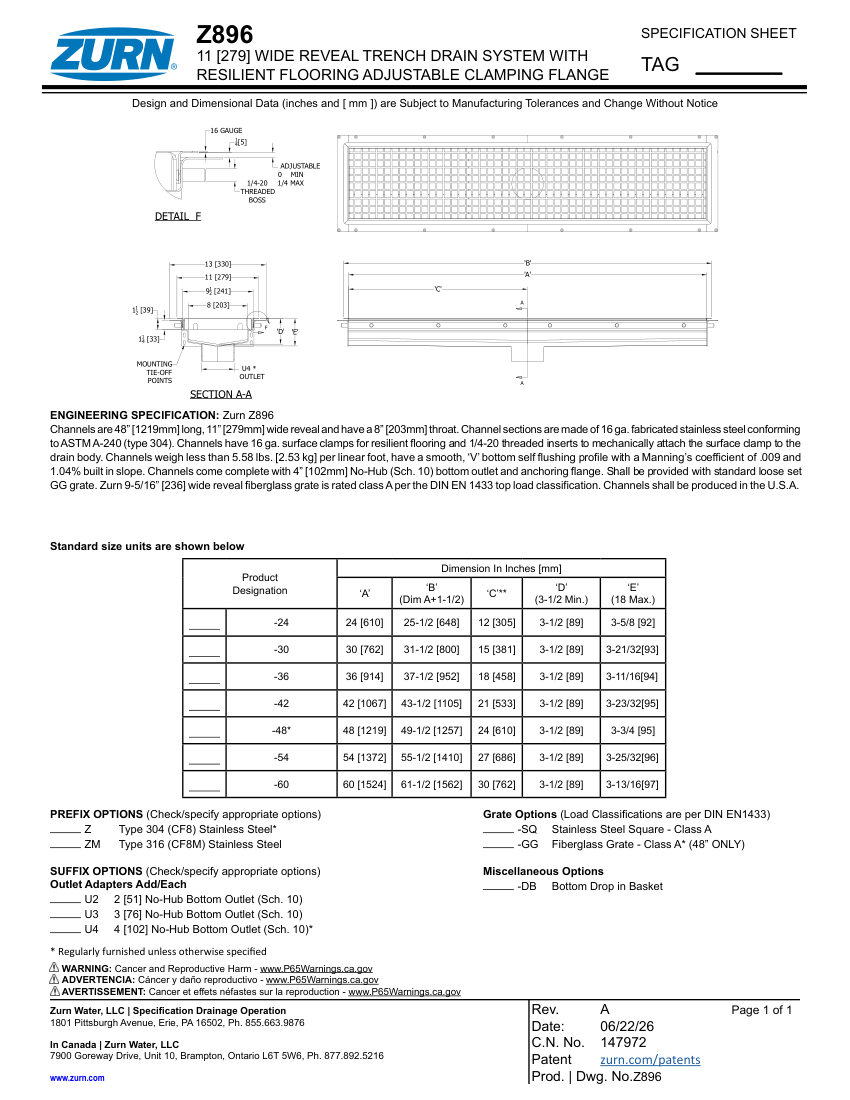

Zurn Z896 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
Z896
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZ896
DescriptionZurn Trench Drain System (Trench Drain). Model Z896. 16 gauge fabricated stainless steel channel; Smooth 'V' bottom self-flushing profile with Manning's coefficient of .009; 1.04% built-in slope; Weight less than 5.58 lbs [2.53 kg] per linear foot. material: Type 304 (CF8) Stainless Steel
Connection size4" [102mm] No-Hub (Sch. 10) bottom outlet
End connectionNo-Hub (Sch. 10)
MountingResilient flooring adjustable clamping flange with 1/4-20 threaded inserts
Dimensions11" [279mm] wide reveal, 8" [203mm] throat, 48" [1219mm] standard length
ComplianceASTM A-240 (Type 304), DIN EN 143
