DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZEMS6001AV-IS — ZEMS6001AVZEMS6001AV-IS

Zurn Sensor Operated Flush Valve (Flush Valves). Model ZEMS6001AV-IS. Hardwired sensor operated with integral infrared convergence-type proximity sensor; Includes high back pressure vacuum breaker and manual push-button override; Features AquaVantage TPE chloramine resistant dual seal diaphragm; Available in multiple flush volumes: 0.125, 0.5, 1.0, 1.5, and 3.0 gpf. material: All-metal, polished chrome plated housing

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZEMS6001AV-IS.pdfData sheet

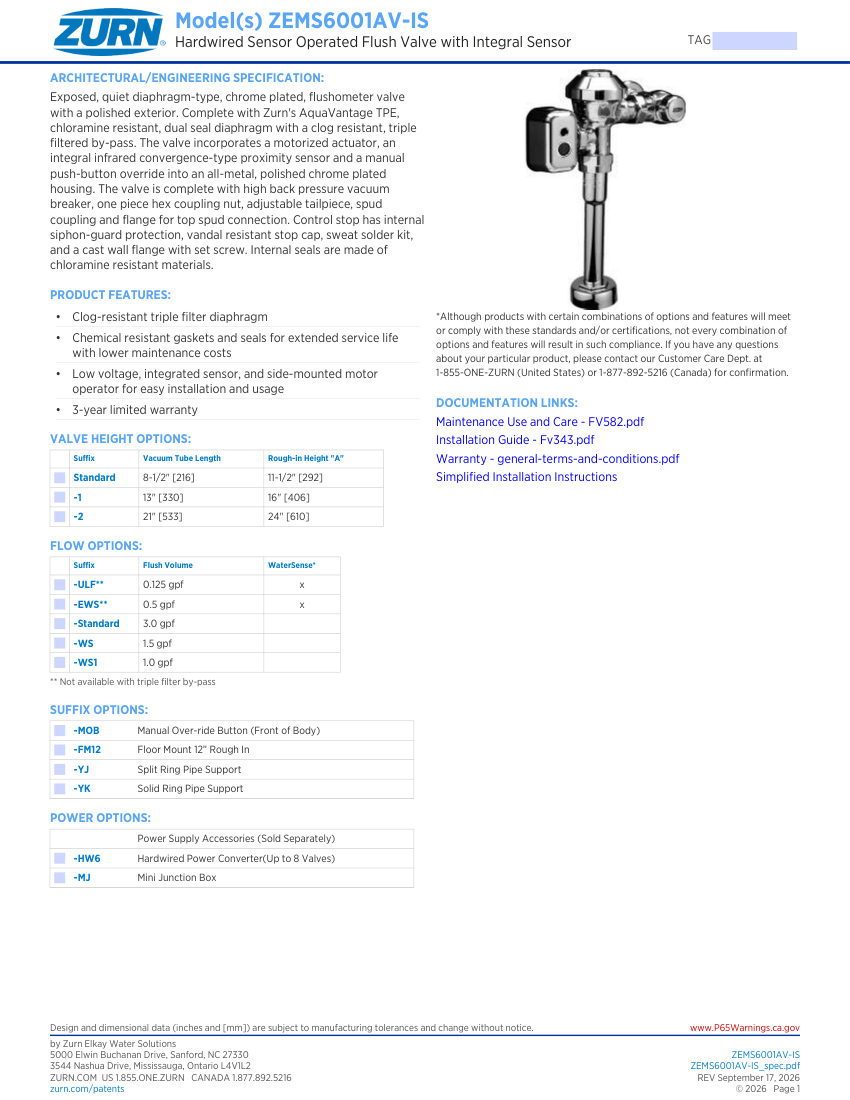

Zurn ZEMS6001AV-IS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
ZEMS6001AV-IS
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZEMS6001AV-IS
DescriptionZurn Sensor Operated Flush Valve (Flush Valves). Model ZEMS6001AV-IS. Hardwired sensor operated with integral infrared convergence-type proximity sensor; Includes high back pressure vacuum breaker and manual push-button override; Features AquaVantage TPE chloramine resistant dual seal diaphragm; Available in multiple flush volumes: 0.125, 0.5, 1.0, 1.5, and 3.0 gpf. material: All-metal, polished chrome plated housing
End connectionTop spud connection
Flow Rate0.125 gpf to 3.0 gpf
FinishPolished chrome
MountingWall mounted (cast wall flange)
DimensionsRough-in Height: 11-1/2" (Stan
