DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZEMS6199-BX17-U

Zurn Access Panel and Frame (Aquaflush). Model ZEMS6199-BX17-U. Includes four 1" [25mm] long vandal resistant screws; Designed for concealed sensor flush valves for urinals; Requires Zurn P6000-HW6 or P6900-ACA-BA power converter for operation; Provides access to in-wall valves when mechanical chase is unavailable. material: #18 gage stainless steel frame, #14 gage stainless steel cover

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZEMS6199-BX17-U.pdfData sheet

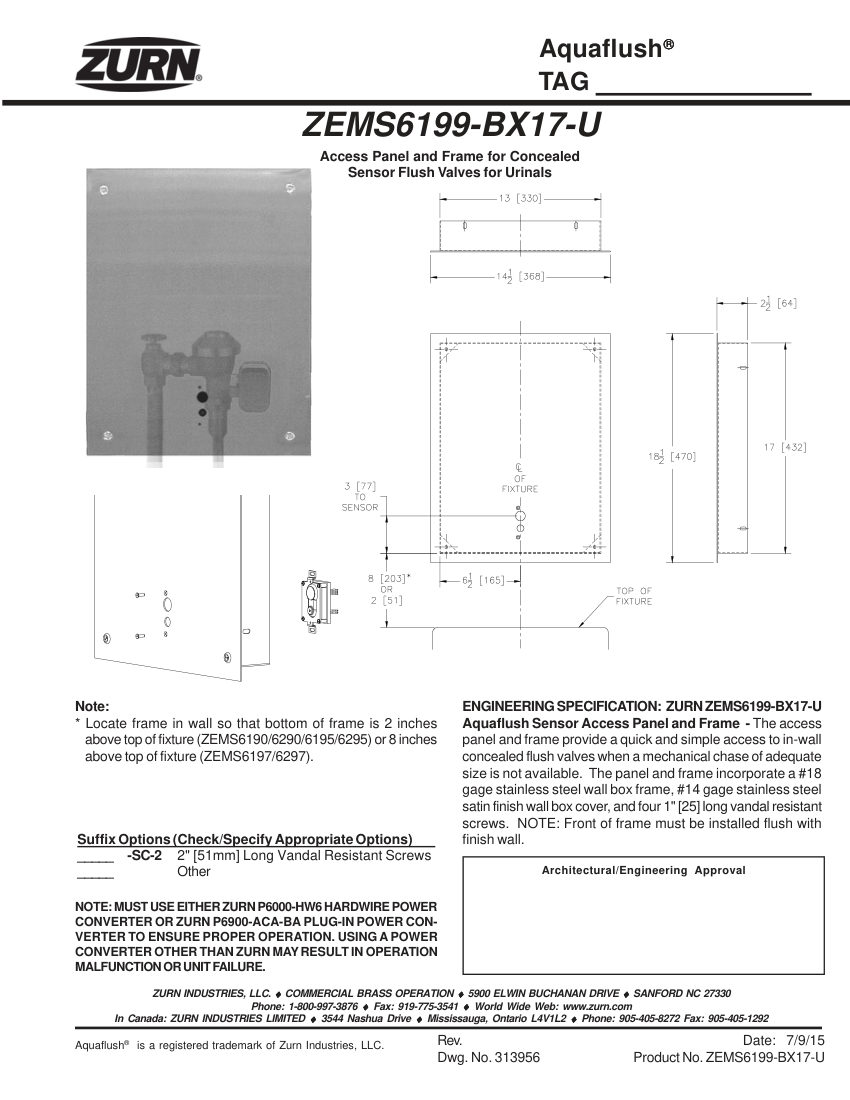

Zurn ZEMS6199-BX17-U cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
ZEMS6199-BX17-U
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZEMS6199-BX17-U
DescriptionZurn Access Panel and Frame (Aquaflush). Model ZEMS6199-BX17-U. Includes four 1" [25mm] long vandal resistant screws; Designed for concealed sensor flush valves for urinals; Requires Zurn P6000-HW6 or P6900-ACA-BA power converter for operation; Provides access to in-wall valves when mechanical chase is unavailable. material: #18 gage stainless steel frame, #14 gage stainless steel cover
FinishSatin
MountingIn-wall, flush with finish wall
DimensionsFrame bottom 2 inches above top of fixture (ZEMS6190/6290/6195/6295) or 8 inches above top of fixture (ZEMS6197/6297).
